Throttle Outlet

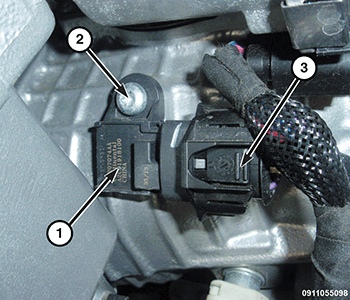

GC0170326Courtesy of CHRYSLER GROUP, LLC
  1. Disconnect and isolate the negative battery cable. If equipped with an Intelligent Battery Sensor (IBS), disconnect the IBS connector first before disconnecting the negative battery cable.
  2. Clean the area around Temperature and Manifold Absolute Pressure (TMAP) sensor (1).
  3. Disconnect the TMAP sensor wire harness connector (3).
  4. Remove the screw (2) and the TMAP sensor (1) from supercharger.
