Throttle Body: Installation: 6.4L

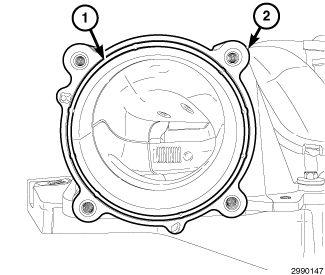

- Clean and inspect the throttle body-to-intake manifold rubber O-ring seal (1) and replace if necessary.
- Clean the sealing surface of throttle body and intake manifold (2).CAUTION:
Do not use spray (carb) cleaners on any part of the throttle body. Do not apply silicone lubricants to any part of the throttle body.

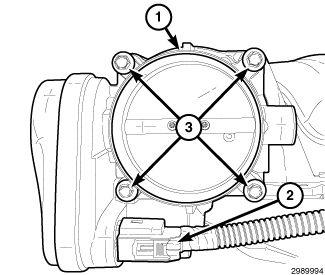

- Install the throttle body (1). Tighten bolts (3) to the proper specifications. Refer to TORQUE SPECIFICATIONS .
- Connect the throttle body wire harness connector (2).
- Install the air cleaner housing. Refer to BODY, AIR CLEANER, INSTALLATION .
- Connect the negative battery cable.
- A scan tool may be used to learn electrical parameters. Go to the Miscellaneous menu and then select ETC Relearn. If the relearn is not preformed, a Diagnostic Trouble Code (DTC) will be set. If necessary, use a scan tool to erase any DTCs from the PCM.
