Capacitor, Ignition: Installation: 6.2L

Courtesy of CHRYSLER GROUP, LLC

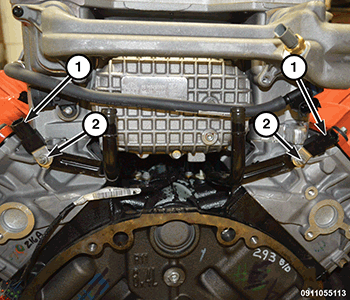

Install the ignition capacitor (1). Tighten bolt (2) to the proper specifications. Refer to TORQUE SPECIFICATIONS .
Install the ignition capacitor wire harness connector.

Courtesy of CHRYSLER GROUP, LLC
Install the engine cover(s) (1).
Install the cowl extension silencer. Refer to SILENCER, COWL EXTENSION, INSTALLATION .
Connect the negative battery cable.
