Left Side

Courtesy of CHRYSLER GROUP, LLC

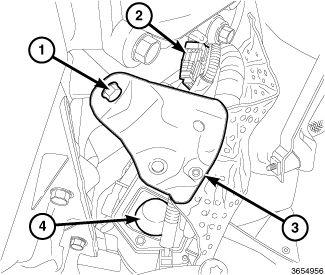

Remove the bolt (1) the secures the starter heat shield (3) to the engine block and position the heat shield aside.

Courtesy of CHRYSLER GROUP, LLC

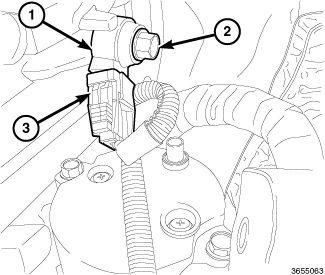

Remove the bolt (2) that secures the knock sensor (1) to the engine block.
Disconnect the wire harness connector (3) from the knock sensor.
