Sensor, Crankcase Pressure: Removal

GC0146436Courtesy of CHRYSLER GROUP, LLC
  1. Disconnect and isolate the negative battery cable.
  2. Remove the engine cover (1).

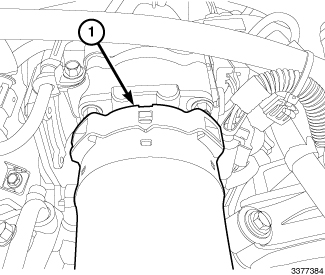

    GC0146755Courtesy of CHRYSLER GROUP, LLC
  3. Disconnect the Charge Air Cooler (CAC) hose (1) from the EGR air flow control valve.
    GC0169759Courtesy of CHRYSLER GROUP, LLC
  4. Disconnect the oil vapor pressure sensor wire harness connector (3).
  5. Detach the oil vapor pressure sensor wire harness (5) from mounting bracket (1).
  6. Remove the nuts (7) and the oil vapor pressure sensor (2).
  7. Disconnect the oil vapor pressure sensor hose (6).
