Sensor, EGR Temperature: Installation

  1. Clean the EGR temperature sensor sealing surface.
    GC0173629Courtesy of CHRYSLER GROUP, LLC

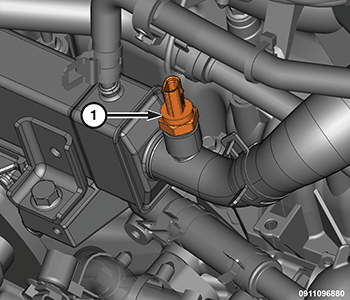

  2. Install EGR temperature sensor (1) and tighten to the proper specifications. Refer to TORQUE SPECIFICATIONS  .
    GC0173589Courtesy of CHRYSLER GROUP, LLC

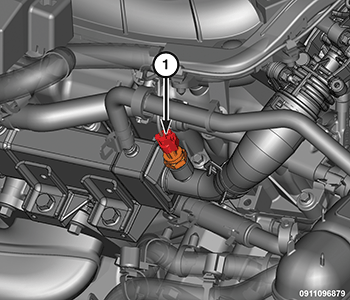

  3. Connect EGR temperature sensor wire harness connector (1).
  4. Connect the negative battery cable.
  5. Install the engine cover. Refer to the appropriate service information .
