Left Outboard

WARNING:

To avoid serious or fatal injury during and following any seat belt or child restraint anchor service, carefully inspect all seat belts, buckles, mounting hardware, retractors, tether straps, and anchors for proper installation, operation, or damage. Replace any belt that is cut, frayed, or torn. Straighten any belt that is twisted. Tighten any loose fasteners. Replace any belt that has a damaged or ineffective buckle or retractor. Replace any belt that has a bent or damaged latch plate or anchor plate. Replace any child restraint anchor or the unit to which the anchor is integral that has been bent or damaged. Never attempt to repair a seat belt or child restraint component. Always replace damaged or ineffective seat belt and child restraint components with the correct, new and unused replacement parts listed in the Mopar® Parts Catalog. Failure to follow these instructions may result in possible serious or fatal injury.

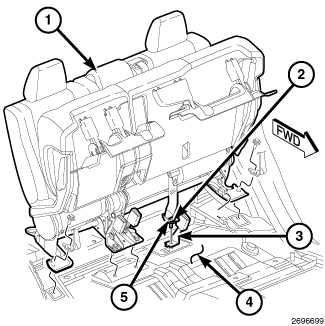

Courtesy of CHRYSLER GROUP, LLC

Engage the second row left outboard seat belt buckle bracket (3) with the second row center seat belt lower anchor bracket (5).
Install and tighten the screw (2) that secures the center seat belt lower anchor and the left outboard seat belt buckle to the rear floor panel (4). Tighten the screw to the proper specifications. Refer to TORQUE SPECIFICATIONS .
Lower the front of the two sections of the second row seat cushion downward from the second row seat backs (1) and position the supports to the rear floor panel.
Install the two screws and two nuts that secure the supports at the front of the second row seat cushion to the rear floor panel. Refer to COVER, SEAT CUSHION, REAR, INSTALLATION .
