Rear Center

WARNING:

To avoid serious or fatal injury during and following any seat belt or child restraint anchor service, carefully inspect all seat belts, buckles, mounting hardware, retractors, tether straps, and anchors for proper installation, operation, or damage. Replace any belt that is cut, frayed, or torn. Straighten any belt that is twisted. Tighten any loose fasteners. Replace any belt that has a damaged or ineffective buckle or retractor. Replace any belt that has a bent or damaged latch plate or anchor plate. Replace any child restraint anchor or the unit to which the anchor is integral that has been bent or damaged. Never attempt to repair a seat belt or child restraint component. Always replace damaged or ineffective seat belt and child restraint components with the correct, new and unused replacement parts listed in the Mopar® Parts Catalog. Failure to follow these instructions may result in possible serious or fatal injury.

Courtesy of CHRYSLER GROUP, LLC

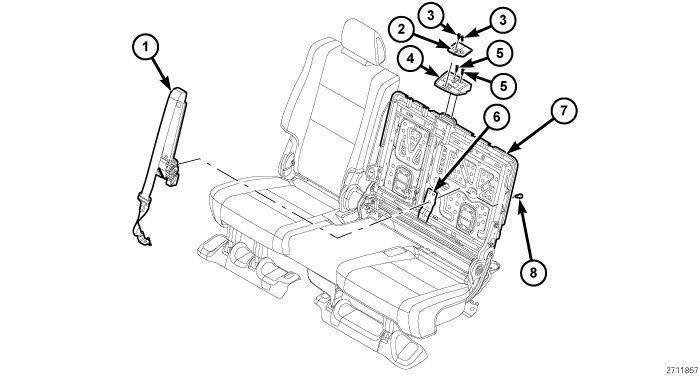

Position the second row center seat belt and retractor (1) onto the front of the left (60 percent) section of the seat back frame (7).
Engage the seat belt and lower anchor through the guide integral to the top of the seat back frame. Be certain the belt webbing is not twisted between the guide and the retractor.
Engage the T-tab on the retractor frame into the T-slot of the bracket (6) integral to the seat back frame.
From behind the back of the seat back, install and tighten the screw (8) that secures the center seat belt retractor to the seat back frame bracket. Tighten the screw to the proper specifications. Refer to TORQUE SPECIFICATIONS .
Engage the center seat belt shield (4) over the belt webbing and position the shield to the top of the left section of the second row seat back frame.
Install and tighten the two screws (5) that secure the shield to the top of the seat back frame. Tighten the screws securely.
Install the trim onto the front and back of the left section of the second row seat back frame. Refer to COVER, SEAT BACK, FRONT, INSTALLATION .
Engage the center seat belt bezel (2) over the seat belt webbing and position the bezel to the top of the second row seat back.
Install and tighten the two screws (3) that secure the bezel to the top of the second row seat back. Tighten the screws securely.

Courtesy of CHRYSLER GROUP, LLC
Fold the front of the two sections of the second row seat cushion upward against the second row seat back (1) and secure them in the upward position.
Engage the anti-rotation slot of the second row left outboard seat belt buckle bracket (3) with the anti-rotation tab of the second row center seat belt lower anchor bracket (5).
Position the second row left outboard seat belt buckle and second row center seat belt lower anchor bracket to the rear floor panel (4) as a unit. Be certain to engage the anti-rotation tab of the buckle bracket between the raised anti-rotation features of the rear floor panel.
Install and tighten the screw (2) that secures the left outboard seat belt buckle and second row center seat belt lower anchor bracket to the rear floor panel. Tighten the screw to the proper specifications. Refer to TORQUE SPECIFICATIONS .
Fold the front of the two sections of the second row seat cushion down from the second row seat back (1) and position the supports at the front of the cushion to the rear floor panel.
Install and tighten the two screws and two nuts that secure the supports at the front of the second row seat cushion to the rear floor panel. Refer to COVER, SEAT CUSHION, REAR, INSTALLATION . Tighten the fasteners to the proper specifications. Refer to TORQUE SPECIFICATIONS .
