Steering System: Column: Installation

WARNING:

Before servicing the steering column the airbag system must be disarmed. Failure to do so may result in accidental deployment of the airbag and possible personal injury.

Refer to AIR BAG, DRIVER, INSTALLATION .

CAUTION:

Steering column module is centered to the vehicles steering system. Failure to keep the system and steering column module centered and locked/inhibited from rotating can result in steering column module damage.

Refer to CLOCKSPRING, STANDARD PROCEDURE .

NOTE:

Make sure the front wheels are still in the straight ahead position.

Courtesy of CHRYSLER GROUP, LLC

Install the column into the vehicle and lift the column up into place. Loosely install the mounting bolts (1), do not tighten at this time.

Courtesy of CHRYSLER GROUP, LLC
Install the two remaining mounting bolts (1) and tighten all four mounting bolts to 27 N. m (20 ft. lbs.).
Connect electrical connectors to tilt and telescope motors, if equipped.

Courtesy of CHRYSLER GROUP, LLC
Slide the coupler from the lower intermediate shaft (2) onto the upper intermediate shaft (1) and install a new coupler bolt (3). Tighten the coupler bolt to 45 N. m (33 ft. lbs.).

Courtesy of CHRYSLER GROUP, LLC
Install the reinforcement and steering column opening cover (2). Refer to MODULE, STEERING COLUMN CONTROL (SCCM), INSTALLATION .

Courtesy of CHRYSLER GROUP, LLC

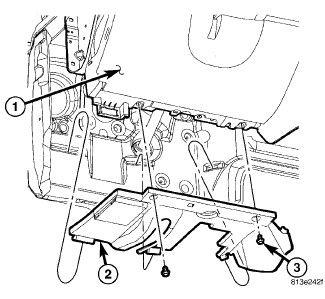

Install the hush panel (2) and knee blocker, if equipped Refer to AIR BAG, KNEE BLOCKER, INSTALLATION .

Courtesy of CHRYSLER GROUP, LLC
Install the steering column module. Refer to MODULE, STEERING COLUMN CONTROL (SCCM), INSTALLATION .
Install the steering wheel (2) onto the steering column.
Install a new steering wheel mounting bolt (1) and tighten to 60 N. m (44 ft. lbs.).
Connect all electrical connectors.
Install the drivers airbag. Refer to AIR BAG, DRIVER, INSTALLATION .
Connect the negative (ground) cable to the battery.
