Shaft, Intermediate, Lower: Installation
| 1 - INTERMEDIATE SHAFT |
| 2 - MASTER CYLINDER |
CAUTION:
Steering column module is centered to the vehicles steering system. Failure to keep the system and steering column module centered and locked/inhibited from rotating can result in steering column module damage.

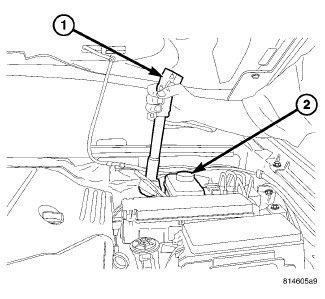

- Install the shaft (1) in from the top by the master cylinder (2).
- Install lower intermediate shaft coupler (2) to upper intermediate shaft (1).
- Install bolt (3) and tighten to 42 N.m (31 ft. lbs.).

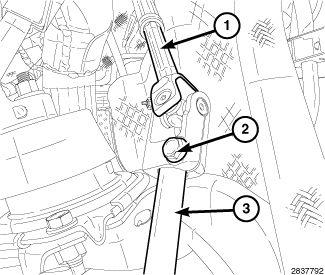

- Slide lower intermediate shaft coupler onto steering gear pinion shaft (3).
- Install coupler pinch bolt (2) and tighten to 45 N.m (33 ft. lbs.)
