Shaft, Intermediate, Upper: Installation

Courtesy of CHRYSLER GROUP, LLC

CAUTION:

Steering column module is centered to the vehicles steering system. Failure to keep the system and steering column module centered and locked/inhibited from rotating can result in steering column module damage.

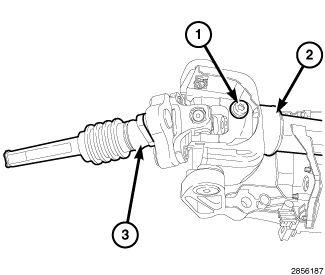

Slide upper intermediate shaft (3) onto splines of steering wheel assembly (2).
Install coupler pinch bolt (1) and tighten to 45 N.m (33 ft. lbs.)

Courtesy of CHRYSLER GROUP, LLC
Slide coupler onto upper intermediate shaft (1).
Install pinch bolt (3) and tighten to 45 N.m (33 ft. lbs.).
