Steering System: Gear: Installation

CAUTION:

The Steering Column Control Module (SCCM) is centered to the vehicles steering system. Failure to keep the system and steering column module centered and locked/inhibited from rotating can result in SCCM damage.

Courtesy of CHRYSLER GROUP, LLC

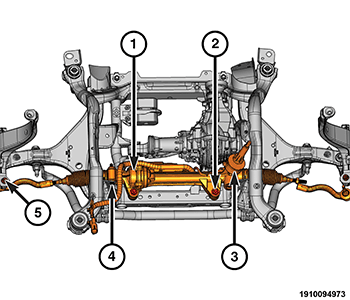

Position the steering gear (3) to the crossmember cradle.
Install the two steering gear bolts (2) and tighten to the proper specifications. Refer to TORQUE SPECIFICATIONS .
Install the one steering gear bolt (4) and tighten it to the proper specifications. Refer to TORQUE SPECIFICATIONS .
Insert both outer tie rod end studs into the steering knuckles.
Install the two outer tie rod end nuts (5) and tighten them to the proper specifications. Refer to TORQUE SPECIFICATIONS .
Install the front differential. Refer to INSTALLATION .
Install the engine cradle. Refer to CROSSMEMBER, CRADLE, ENGINE AND SUSPENSION, INSTALLATION .
Perform a front wheel alignment. Refer to WHEEL ALIGNMENT .
