Bottle, Coolant Recovery: Installation: 5.7L/6.4L

Courtesy of CHRYSLER GROUP, LLC

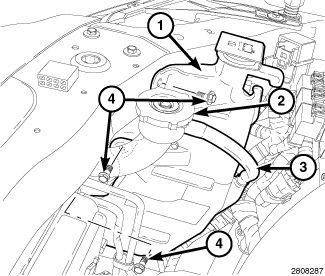

1. Position the recovery bottle (1) into the vehicle.
2. Install the mounting bolts (4) and tighten to the proper specifications. Refer to TORQUE SPECIFICATIONS GAS  .
3. Install the overflow tube (3) to the radiator filler neck (2).
