Heater, Engine Block: Installation: 3.6L

Courtesy of CHRYSLER GROUP, LLC

Clean the engine block hole and heater seat.

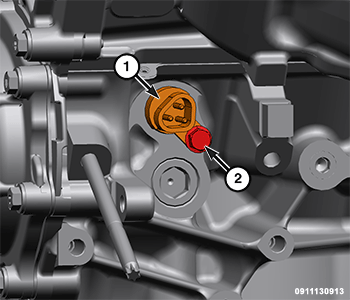

Install the engine block heater (1) and tighten the bolt (2) to 12 N.m (9 ft. lbs.).

Courtesy of CHRYSLER GROUP, LLC

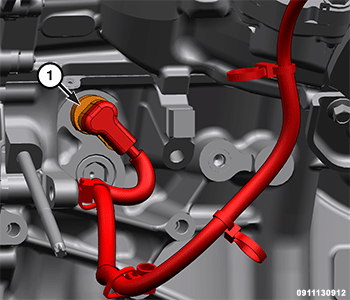

Connect the power cord plug (1) to the engine block heater.
Install the A/C compressor. Refer to COMPRESSOR, A/C, INSTALLATION .
