Heater, Engine Block: Installation: 5.7L

Courtesy of CHRYSLER GROUP, LLC

Thoroughly clean the cylinder block core hole and the block heater seat.

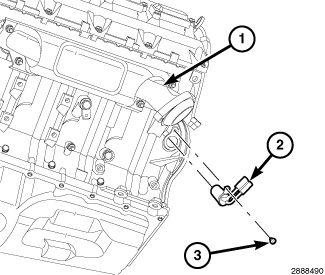

Insert the block heater assembly (2) into the block.
With the block heater fully seated, tighten the bolt (3) to the proper specifications. Refer to TORQUE SPECIFICATIONS GAS .
Connect the power cord to the block heater (2).
