Heater, Engine Block: Installation: 6.2L/6.4L

Courtesy of CHRYSLER GROUP, LLC

Thoroughly clean the cylinder block core hole and the block heater seat.
Insert the block heater assembly (2) into the block.
With the block heater fully seated, tighten the bolt (3) to 12 N.m (106 in. lbs.) torque.
Connect the power cord to the block heater (2).

Courtesy of CHRYSLER GROUP, LLC

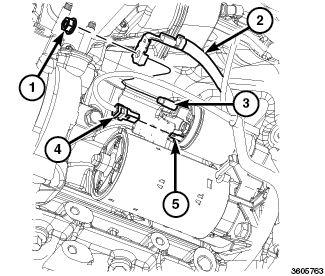

Install the starter (1). Refer to STARTER, INSTALLATION .
Lower the vehicle.
Connect the negative battery cable.
