3.0L Diesel

  1. Disconnect and isolate the negative battery cable.
    GC0146436Courtesy of CHRYSLER GROUP, LLC
  2. Remove the engine cover (1).
  3. Remove the air cleaner body. Refer to the appropriate service information .
  4. Drain the cooling system. Refer to DRAINING  .
  5. Remove the coolant temperature sensor. Refer to SENSOR, COOLANT TEMPERATURE, REMOVAL .
    GC0172137Courtesy of CHRYSLER GROUP, LLC

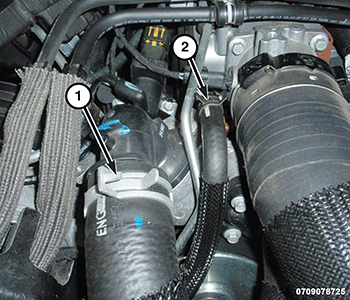

  6. Remove the coolant hose (2) from the water pump housing.
  7. Remove the thermostat assembly. Refer to THERMOSTAT, REMOVAL .
    GC0172170Courtesy of CHRYSLER GROUP, LLC

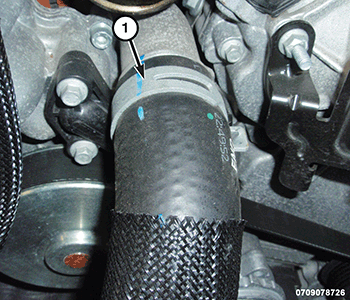

  8. Remove the lower radiator hose (1) from the water pump housing and position aside.
  9. Remove the belt tensioner assembly. Refer to TENSIONER, BELT, REMOVAL .
    GC0146730Courtesy of CHRYSLER GROUP, LLC
  10. Remove the bolts (2) and (3) and the belt tensioner mounting bracket (1).
    NOTE:

    High pressure fuel tubes from the fuel injection pump to the fuel rail or from the fuel rail to the fuel injector must be replaced with NEW  units if removed.

  11. Remove the fuel tube from the fuel injection pump to fuel rail. Refer to TUBE(S), FUEL, REMOVAL .
    GC0158155Courtesy of CHRYSLER GROUP, LLC
  12. Remove the bolts (1) and the coolant tube (2).
    GC0157462Courtesy of CHRYSLER GROUP, LLC
  13. Remove the bolts (1) and water pump assembly (2).
  14. Remove the bolts (4) and the coolant inlet tube (5).
  15. Remove and DISCARD  the O-ring seal (3) from the coolant inlet tube (5).
    GC0157463Courtesy of CHRYSLER GROUP, LLC
  16. Remove and DISCARD  the O-ring seal (1) from the coolant tube (2).
