Sensor, Coolant Temperature: Installation: 6.2L

Courtesy of CHRYSLER GROUP, LLC

1. Apply MOPAR® thread sealant with PFTE to the Engine Coolant Temperature (ECT) sensor threads.

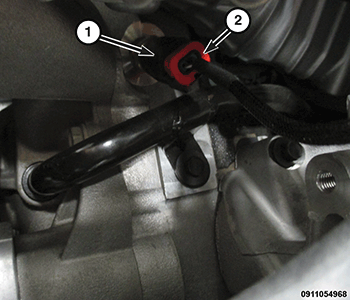

2. Install the ECT sensor (1) and tighten to the proper specifications. Refer to TORQUE SPECIFICATIONS GAS  .
3. Connect the ECT sensor wire harness connector (2).
4. Install the air cleaner body. Refer to INSTALLATION .
5. Fill the cooling system. Refer to COOLANT SYSTEM AIR EVACUATION  .
6. Connect the negative battery cable.
