Cooling System: Engine: Thermostat: Installation: 3.6L

Clean the mating surfaces on the timing cover and thermostat housing.

Courtesy of CHRYSLER GROUP, LLC

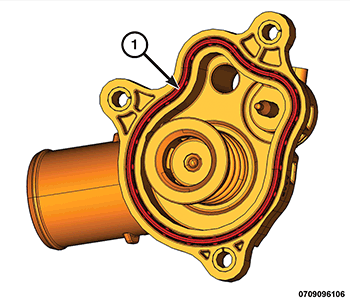

Install a NEW thermostat housing gasket (1).

Courtesy of CHRYSLER GROUP, LLC

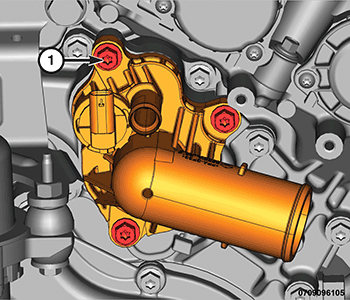

Install the thermostat housing and tighten the bolts (1) finger tight.

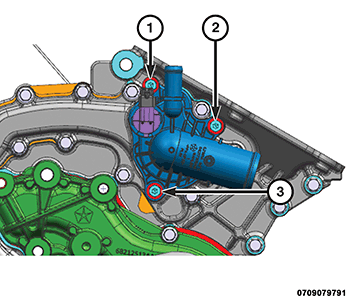

Fig 1: Thermostat Housing Bolts Tightening Sequence
Courtesy of CHRYSLER GROUP, LLC
Using the sequence shown, tighten the bolts to the proper specifications. Refer to TORQUE SPECIFICATIONS GAS .

Courtesy of CHRYSLER GROUP, LLC
Connect the Engine Coolant Temperature (ECT) sensor (1) wire harness connector.

Courtesy of CHRYSLER GROUP, LLC

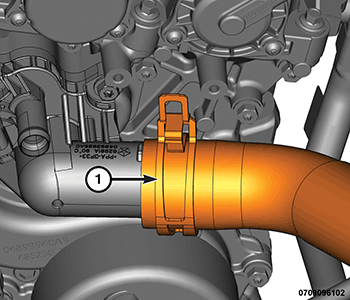

Install the upper radiator hose (1) onto the thermostat housing.

Courtesy of CHRYSLER GROUP, LLC

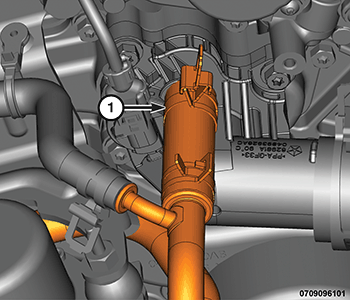

Install the coolant hose (1) onto the thermostat housing.
Fill the cooling system. Refer to COOLANT SYSTEM AIR EVACUATION .
Install the air cleaner body. Refer to INSTALLATION .
Connect the negative battery cable.
Run the engine until it reaches normal operating temperature. Check the cooling system for leaks and correct fluid level. Refer to STANDARD PROCEDURE .
