Radiator, Low Temperature: Installation

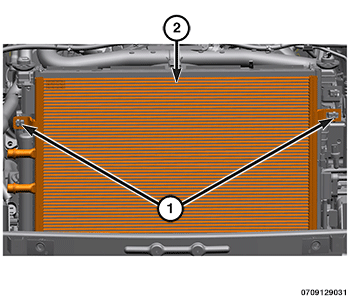

- Install the Low Temperature Radiator (LTR) (2), aligning it to the engine radiator, and engage the retaining clips (1).

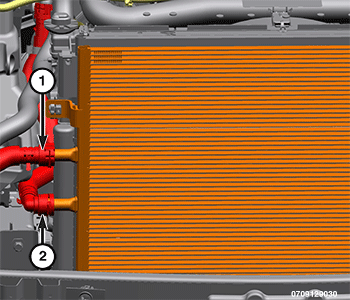

- Install the outlet hose (2) and the inlet hose (1) onto the LTR.
- Install the hood latch. Refer to LATCH, HOOD, INSTALLATION .
- Install the fascia. Refer to FASCIA, FRONT, INSTALLATION .
- Fill the cooling system with coolant. Refer to COOLANT SYSTEM AIR EVACUATION .
- Connect the negative battery cable.
- Operate the engine until it reaches normal operating temperature. Check the cooling system for the correct fluid levels.
