Removal And Installation: Removal
- Disconnect and isolate the negative battery cable. If equipped with an Intelligent Battery Sensor (IBS), disconnect the IBS connector first before disconnecting the negative battery cable.
- Remove the engine cover. Refer to COVER, ENGINE, REMOVAL AND INSTALLATION .
- Raise and support the vehicle. Refer to HOISTING, STANDARD PROCEDURE
.

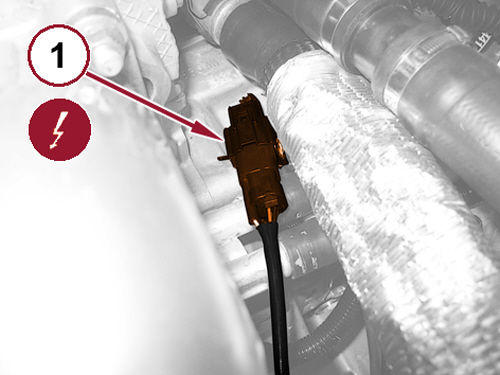

- Disconnect the wire harness connector (1) from the oxygen sensor upstream of the catalyst.
- Disengage the oxygen sensor wire harness (1), remove the fastener and the bracket.

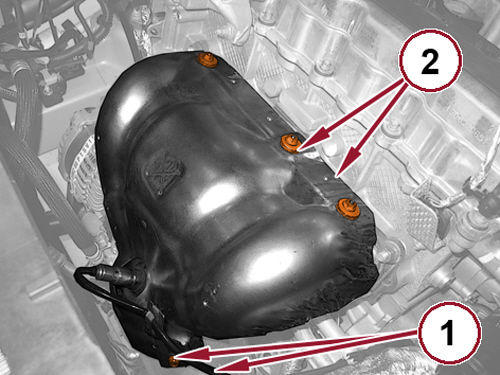

- Remove the fasteners and the exhaust manifold upper heat shield (2).

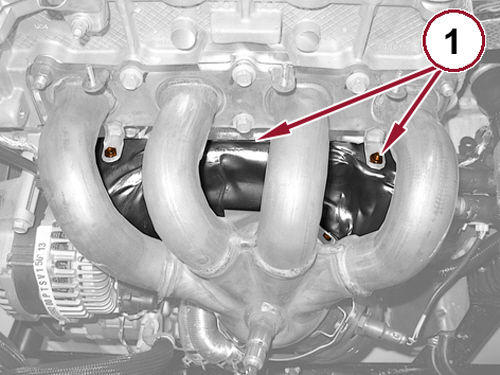

- Remove the fasteners and the heat shield (1) below the exhaust manifold.

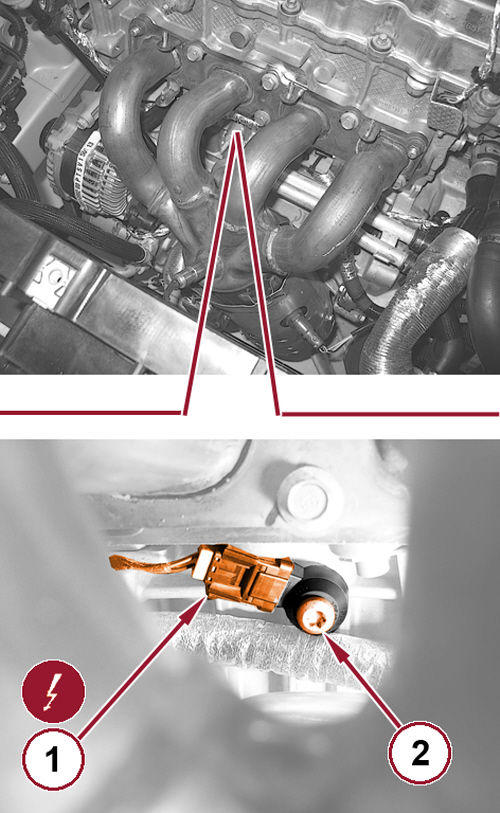

- Disconnect the knock sensor wire harness connector (1).
- Remove and DISCARD the knock sensor fastener (2), then remove the knock sensor.
