Removal And Installation: Installation

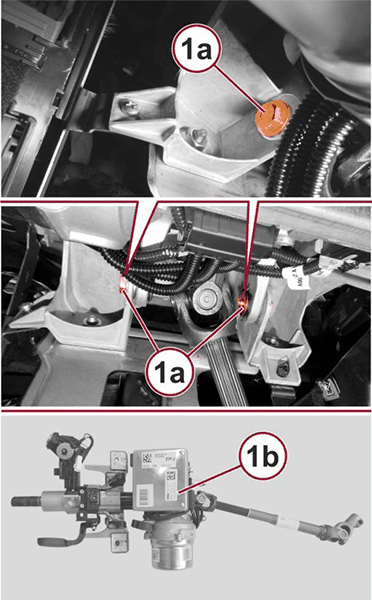

GC0208218Courtesy of CHRYSLER GROUP, LLC
  1. Position the steering column (1b) to the vehicle. Install the steering column to dash frame bolts (1a) and tighten to the proper torque specification. Refer to TORQUE SPECIFICATIONS  .

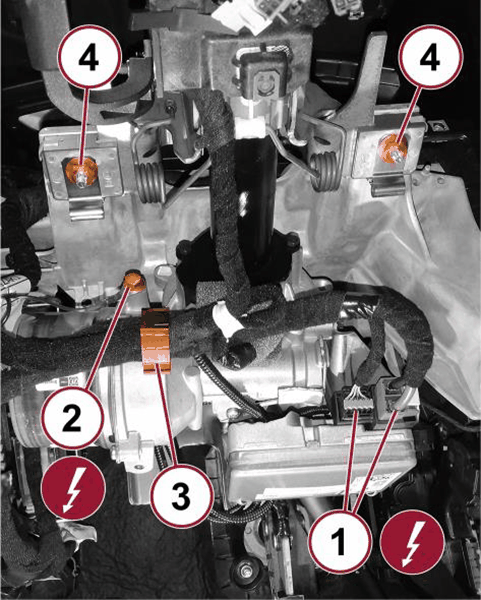

    GC0208219Courtesy of CHRYSLER GROUP, LLC
  2. Install the steering column to dash frame nuts (4) and tighten to the proper torque specification. Refer to TORQUE SPECIFICATIONS  .
  3. Connect the EPS wire harness connectors (1).
  4. Install and tighten the ground cable bolt (2).

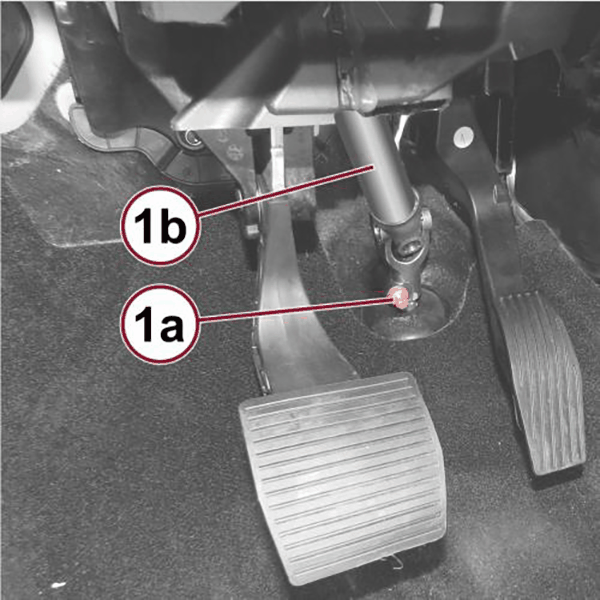

    GC0208220Courtesy of CHRYSLER GROUP, LLC
  5. Install the intermediate shaft (1b) to the steering gear.
  6. Install a NEW  intermediate shaft pinch bolt (1a) and tighten to the proper torque specification. Refer to TORQUE SPECIFICATIONS  .
  7. Install the driver knee airbag. Refer to AIR BAG, KNEE BLOCKER, REMOVAL AND INSTALLATION .
  8. Install the sentry key antenna. Refer to ANTENNA, SENTRY KEY, REMOVAL AND INSTALLATION .
  9. Install the Steering Column Control Module (SCCM). Refer to MODULE, STEERING COLUMN CONTROL (SCCM), REMOVAL AND INSTALLATION .
  10. Install the steering wheel. Refer to WHEEL, STEERING, REMOVAL AND INSTALLATION .
  11. Connect the negative battery cable. If equipped with an Intelligent Battery Sensor (IBS), connect the IBS connector.
