Removal And Installation: Installation
To avoid serious or fatal injury during and following any seat belt or child restraint anchor service, carefully inspect all seat belts, buckles, mounting hardware, retractors, tether straps, and anchors for proper installation, operation, or damage. Replace any belt that is cut, frayed, or torn. Straighten any belt that is twisted. Tighten any loose fasteners. Replace any belt that has a damaged or ineffective buckle or retractor. Replace any belt that has a bent or damaged latch plate or anchor plate. Replace any child restraint anchor or the unit to which the anchor is integral that has been bent or damaged. Never attempt to repair a seat belt or child restraint component. Always replace damaged or ineffective seat belt and child restraint components with the correct, new and unused replacement parts listed in the Mopar® Parts Catalog. Failure to follow these instructions may result in possible serious or fatal injury.
- Position the front seat belt turning loop height adjuster to the inside of the upper B-pillar.
- Lift the height adjuster upward on the B-pillar far enough to engage the hooks on the back of the adjuster into the B-pillar clearance holes.
- Install and tighten the two fasteners that secure the height adjuster to the inside of the upper B-pillar. Tighten the fastener to the proper torque specification. Refer to TORQUE SPECIFICATIONS .

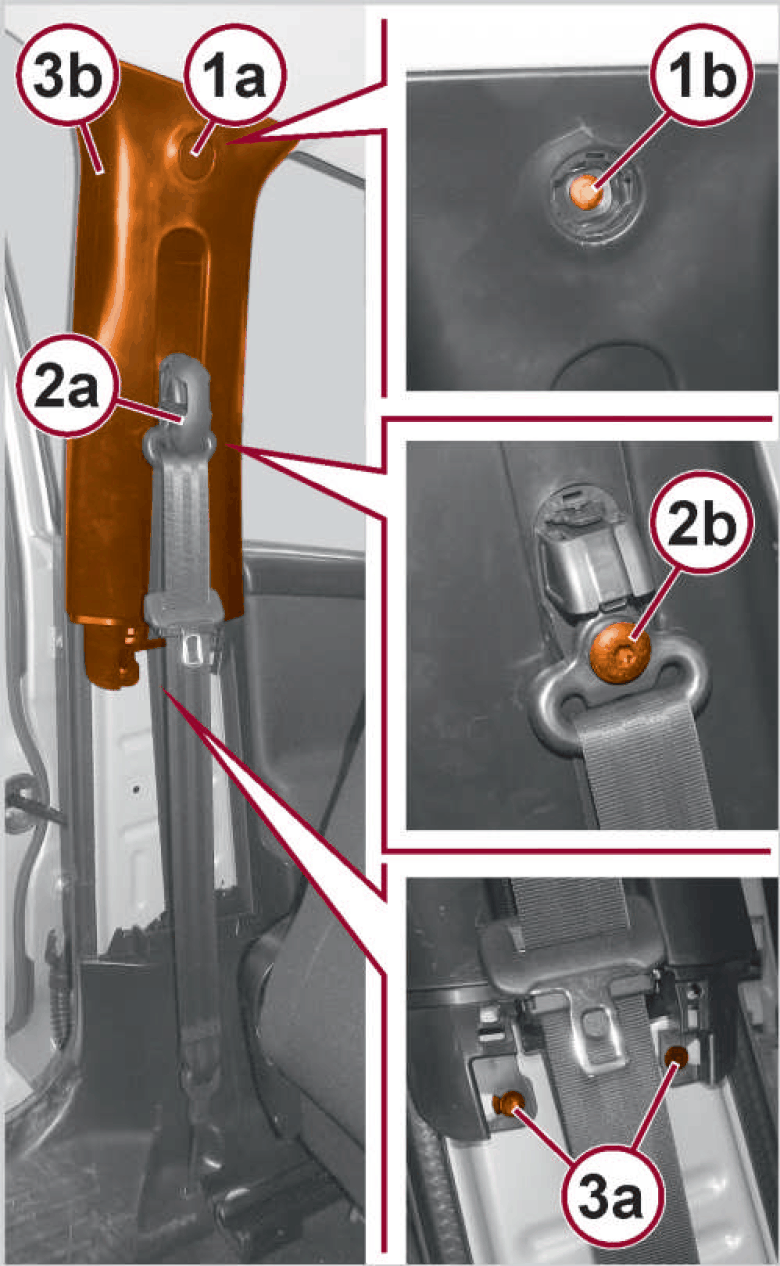

- Install the upper trim (3b) onto the inside of the B-pillar. Refer to PANEL, B-PILLAR TRIM, UPPER, REMOVAL AND INSTALLATION .
- Position the front seat belt turning loop onto the height adjuster on the inside of the upper B-pillar.
- Install and tighten the fastener (2b) that secures the turning loop to the height adjuster. Tighten the fastener to the proper torque specification. Refer to TORQUE SPECIFICATIONS .
- Engage the lower snap features of the trim cover (2a) under the height adjuster, then use hand pressure to press the top of the trim cover firmly and evenly over the height adjuster until it snaps into place.
