Pedal, Accelerator: Installation

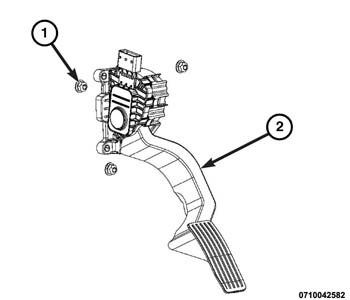

GC0162298Courtesy of CHRYSLER GROUP, LLC
  1. Install the accelerator pedal (2) and tighten the accelerator pedal nuts (1) to the proper specifications. Refer to TORQUE SPECIFICATIONS  .
  2. Connect the accelerator pedal wire harness connector.
  3. Connect the negative battery cable. If equipped with an Intelligent Battery Sensor (IBS), connect the IBS connector.
  4. Use a scan tool and perform the APPS RELEARN function.
