Removal And Installation: Installation

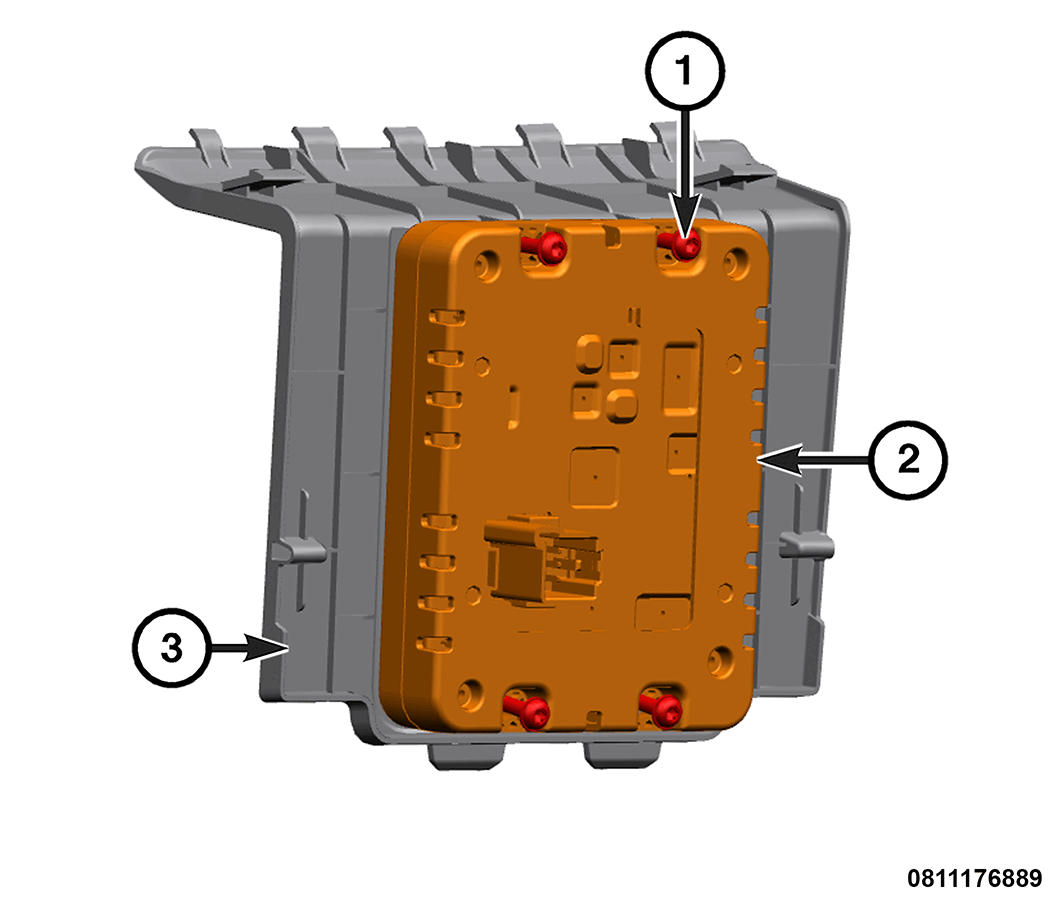

GC0202782Courtesy of CHRYSLER GROUP, LLC
  1. Position the wireless charging pad module (2) to the wireless charging bracket (3), then install the fasteners (1) and tighten them securely.

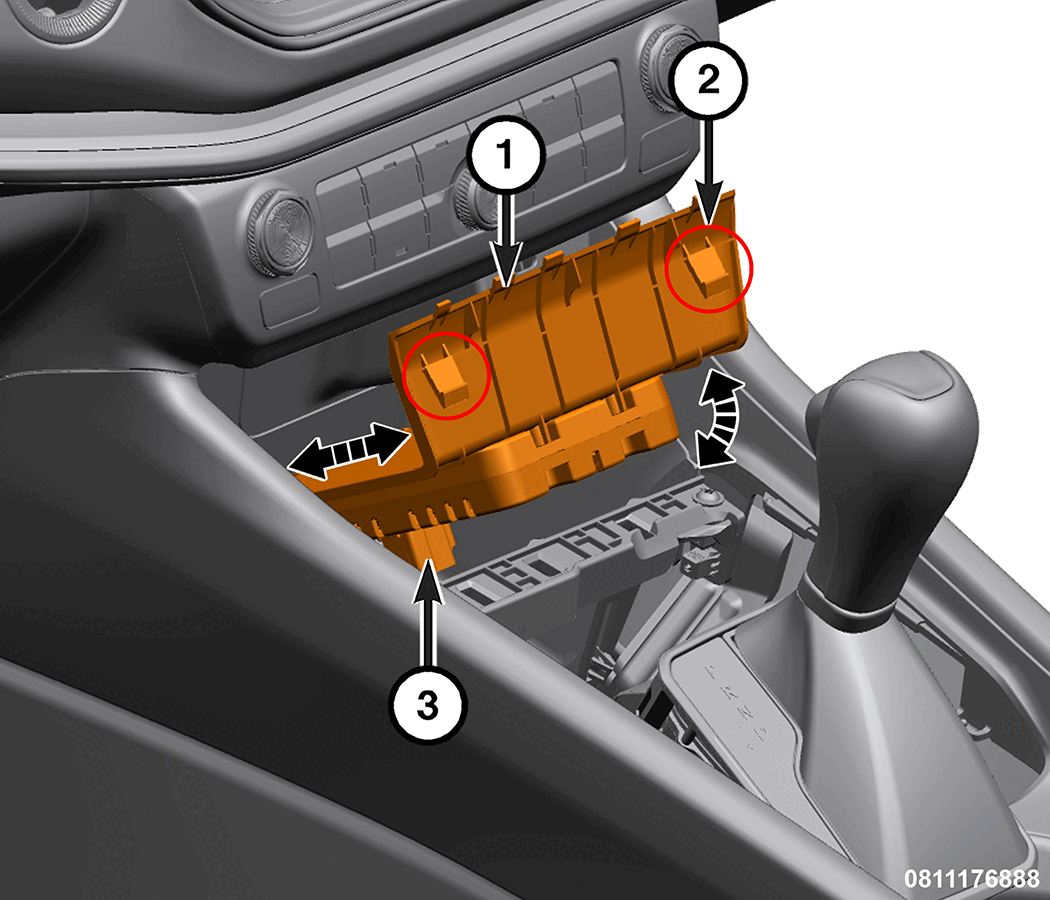

    GC0202719Courtesy of CHRYSLER GROUP, LLC
  2. Position the wireless charging module bracket into the floor console.
  3. Connect the wire harness connector (3) to the wireless charging pad module.
  4. Slide the tab on the front of the wireless charging module bracket (1) into the slot on the front of the floor console.
  5. Lower the rear of the wireless charging bracket until the retaining tabs (2) are fully engaged into the floor console.

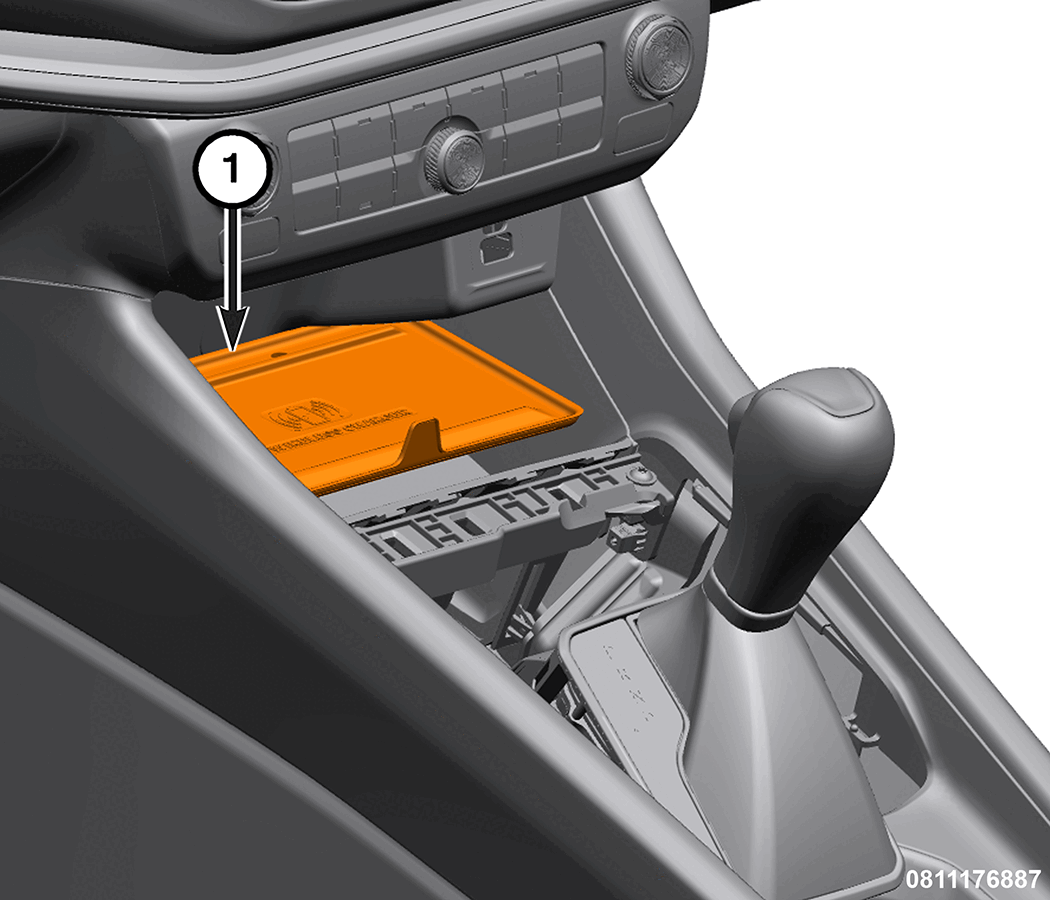

    GC0202738Courtesy of CHRYSLER GROUP, LLC
  6. Install the wireless charging pad mat (1).
  7. Install the shifter bezel. Refer to BEZEL, SHIFTER, REMOVAL AND INSTALLATION .
  8. Connect the negative battery cable. If equipped with an Intelligent Battery Sensor (IBS), connect the IBS connector.
