Removal And Installation: Removal
WARNING: This page is about a different car, the 2021 Jeep Compass. However, it is still accessible from the selected car via links, so may be relevant.
CAUTION:
Propeller shaft installation is a two-person operation. Never allow propeller shaft to hang from the center bearing, or while only connected to the transmission or rear axle flanges. A helper is required. If a propeller shaft section is hung unsupported, damage may occur to the shaft, coupler, and center bearing from over-angulation. This may result in driveline vibrations or component failure.
- Raise and support the vehicle. Refer to HOISTING, STANDARD PROCEDURE .
- Remove the muffler. Refer to MUFFLER, EXHAUST, REMOVAL AND INSTALLATION .
- Remove both rear halfshafts. Refer to REMOVAL AND INSTALLATION or REMOVAL AND INSTALLATION .
- Remove the rear stabilizer bar. Refer to STABILIZER BAR, REAR SUSPENSION, REMOVAL AND INSTALLATION .
- Remove the driveshaft. Refer to REMOVAL AND INSTALLATION
.

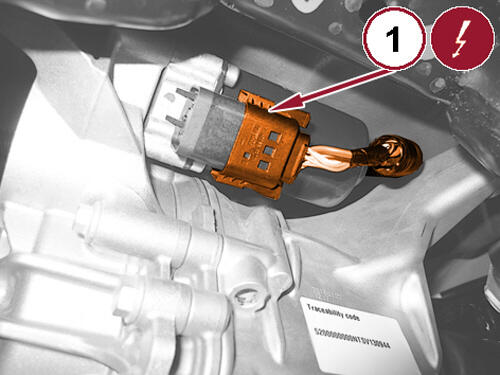

- Disconnect the electrical connector (1) of the Rear Driveline Module (RDM) actuator.

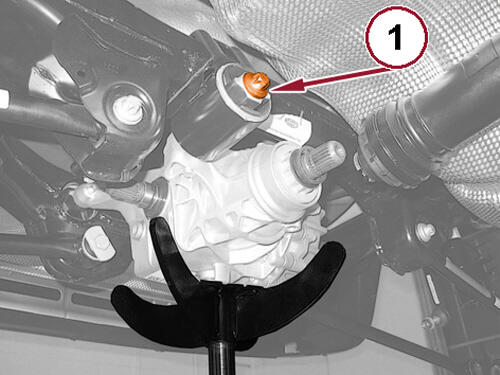

- Position a suitable jack to support the RDM and remove the front RDM mounting bolt (1).

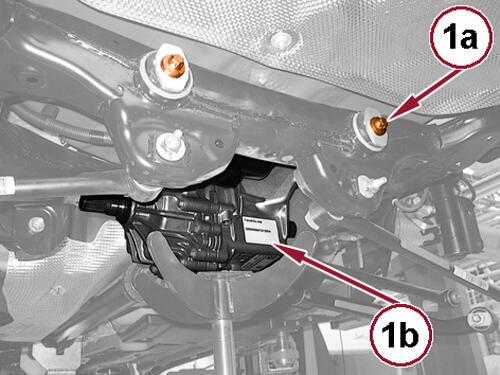

- Remove the rear RDM isolator through bolts (1a) and remove the RDM (1b).

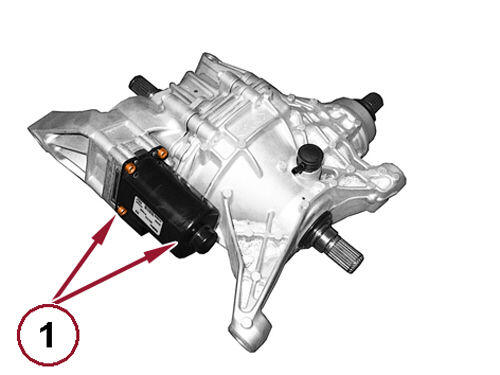

- If necessary, remove the screws and the actuator (1) from the RDM.
