2.4L Multi Air: Installation

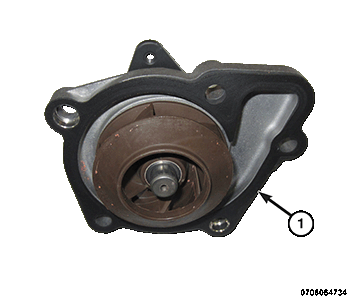

- Install a NEW
gasket (1) onto the water pump.

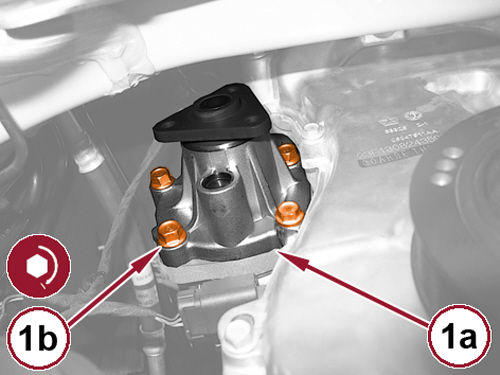

- Install the water pump (1a). Tightened the five bolts (1b) in a criss-cross pattern to the proper torque specification. Refer to TORQUE SPECIFICATIONS GAS ENGINE

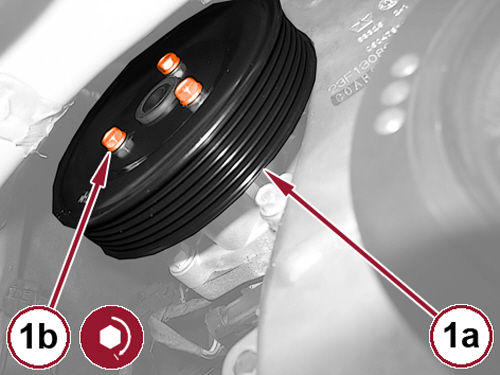

- Install the water pump pulley (1a). Tighten the three bolts (1b) to the proper torque specification. Refer to TORQUE SPECIFICATIONS GAS ENGINE
- Install the serpentine belt. Refer to BELT, SERPENTINE, REMOVAL AND INSTALLATION .
- Install the right front wheelhouse splash shield. Refer to SHIELD, SPLASH, FRONT WHEELHOUSE, REMOVAL AND INSTALLATION .
- Install the belly pan. Refer to BELLY PAN, REMOVAL AND INSTALLATION .
- Install the right front tire and wheel assembly. Refer to REMOVAL AND INSTALLATION .
- Fill the cooling system. Refer to STANDARD PROCEDURE .
- Run the engine until it reaches normal operating temperature. Check the cooling system for correct fluid level or leaks. Refer to TORQUE SPECIFICATIONS GAS ENGINE
- Remove the support and lower the vehicle.
