2.4L Multi Air: Installation

Clean the gasket mating surfaces.

Courtesy of CHRYSLER GROUP, LLC

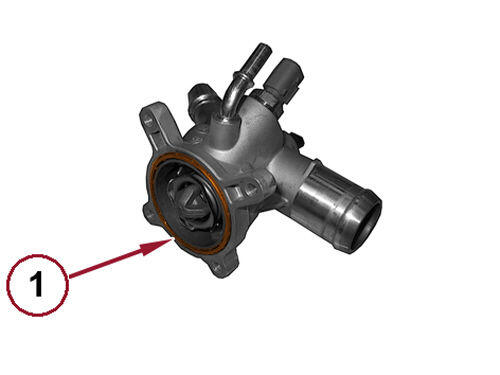

Install a NEW thermostat housing gasket (1).

Courtesy of CHRYSLER GROUP, LLC

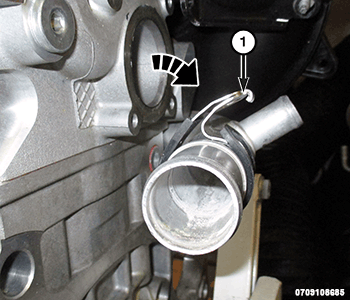

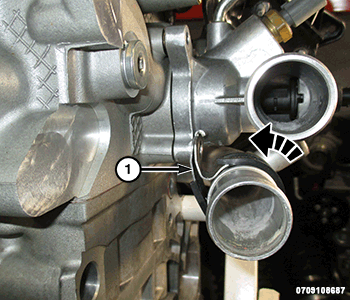

Rotate the loop clamp (1) clockwise at least 45° away from the thermostat mounting surface.

Courtesy of CHRYSLER GROUP, LLC

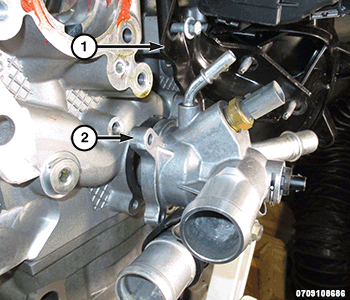

Pull the intake manifold upper support bracket (1) slightly away from the engine and install the thermostat housing (2).

Courtesy of CHRYSLER GROUP, LLC
Rotate the loop clamp (1) back into position against the thermostat housing flange.

Courtesy of CHRYSLER GROUP, LLC

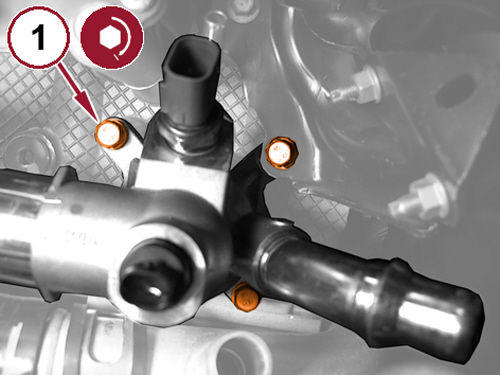

Install the four thermostat housing bolts (1) hand tight.

Courtesy of CHRYSLER GROUP, LLC

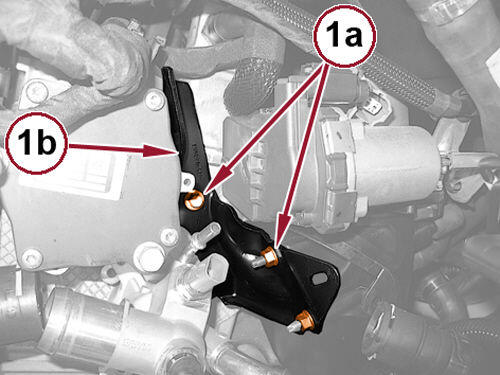

Install the fasteners (1a) to the intake manifold upper support bracket (1b). Securely tighten the fasteners and previously installed thermostat housing bolts in a criss-cross pattern to the proper torque specification. Refer to TORQUE SPECIFICATIONS GAS ENGINE

Courtesy of CHRYSLER GROUP, LLC

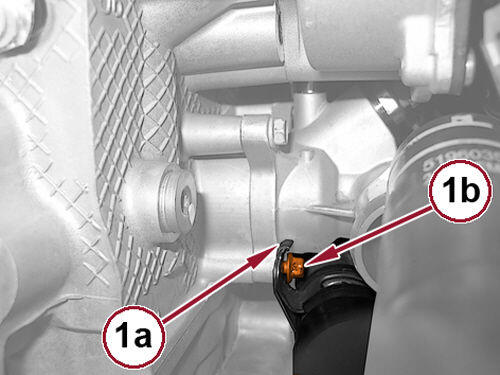

Bend the loop clamp end tab (1a) to secure the thermostat housing bolt (1b).

Courtesy of CHRYSLER GROUP, LLC

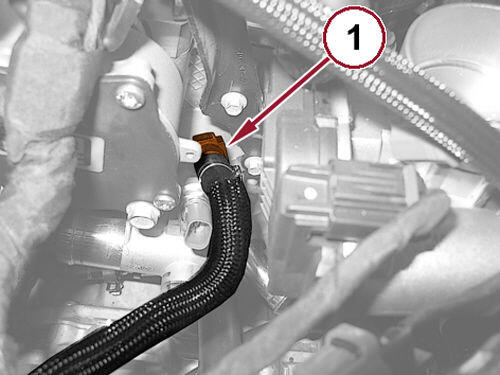

Install the degas hose (1) to the thermostat housing and connect the quick-connect fitting.

Courtesy of CHRYSLER GROUP, LLC

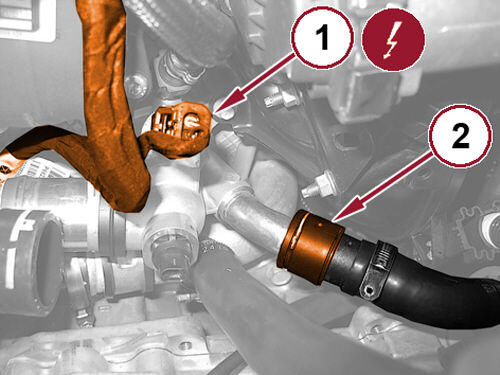

Install the coolant hose to the thermostat housing and engage the quick-connect coupling (2).
Connect and lock the Engine Coolant Temperature (ECT) sensor wire harness connector (1).

Courtesy of CHRYSLER GROUP, LLC

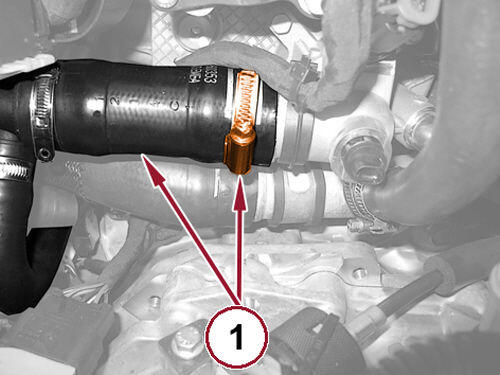

Install the radiator hose (1) to the thermostat housing and securely tighten the clamp.
Install the battery tray and battery. Refer to TRAY, BATTERY, REMOVAL AND INSTALLATION .
Fill the cooling system. Refer to STANDARD PROCEDURE .
Install the engine cover. Refer to COVER, ENGINE, REMOVAL AND INSTALLATION .
Start engine and check for leaks.
Run the engine until it reaches normal operating temperature. Check the cooling system for correct fluid level. Refer to STANDARD PROCEDURE .
