Sensor, Fuel Pressure: Description

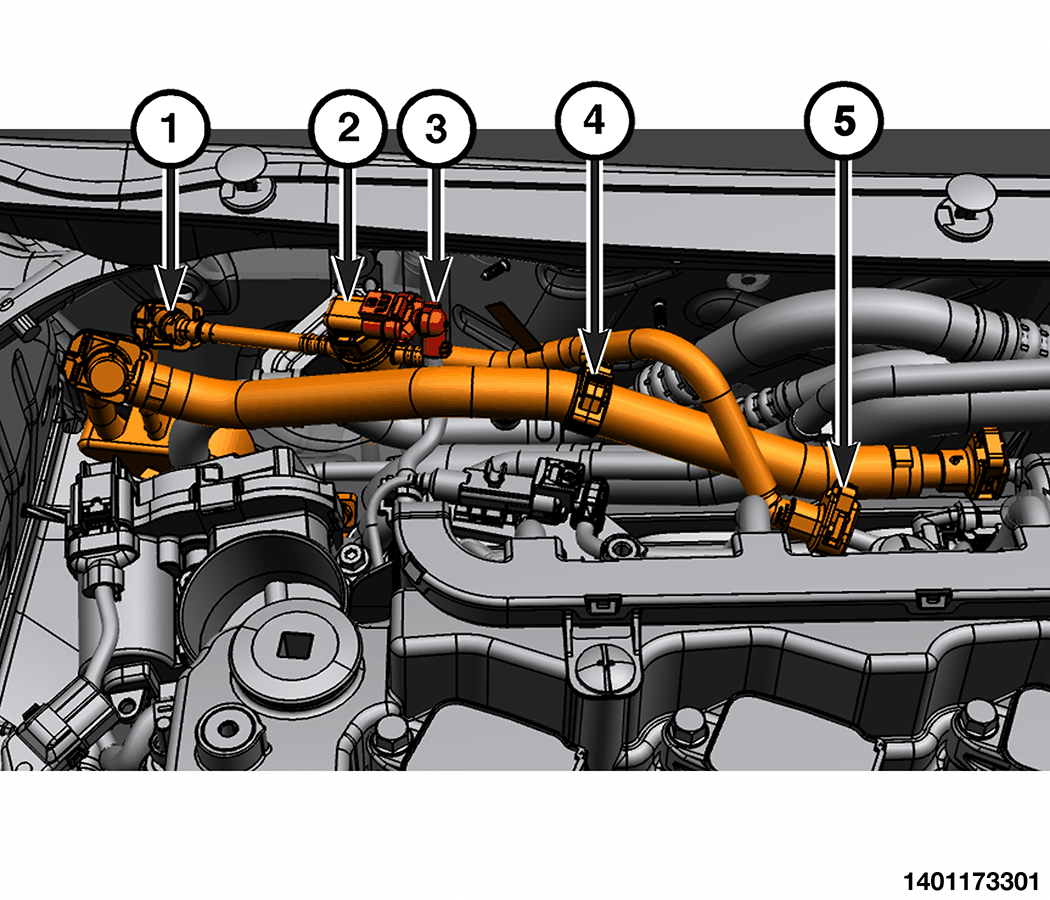

The fuel pressure sensor (2) is integral to the fuel supply line located in the right rear of engine compartment. The fuel pressure sensor accurately monitors the fuel delivery pump pressure. The Powertrain Control Module (PCM) monitors the sensor utilizing 3 circuits:
- 5 volt reference signal
- Fuel pressure input signal
- Sensor ground (sensor return)
