Z-Case Fuse Array: Removal
- Disconnect and isolate the negative battery cable(s). BATTERY DISCONNECT - DUAL 12 VOLT BATTERY SYSTEM .
- Remove the Power Distribution Center PDC cover by pressing inward on the latches located on the sides of the PDC.

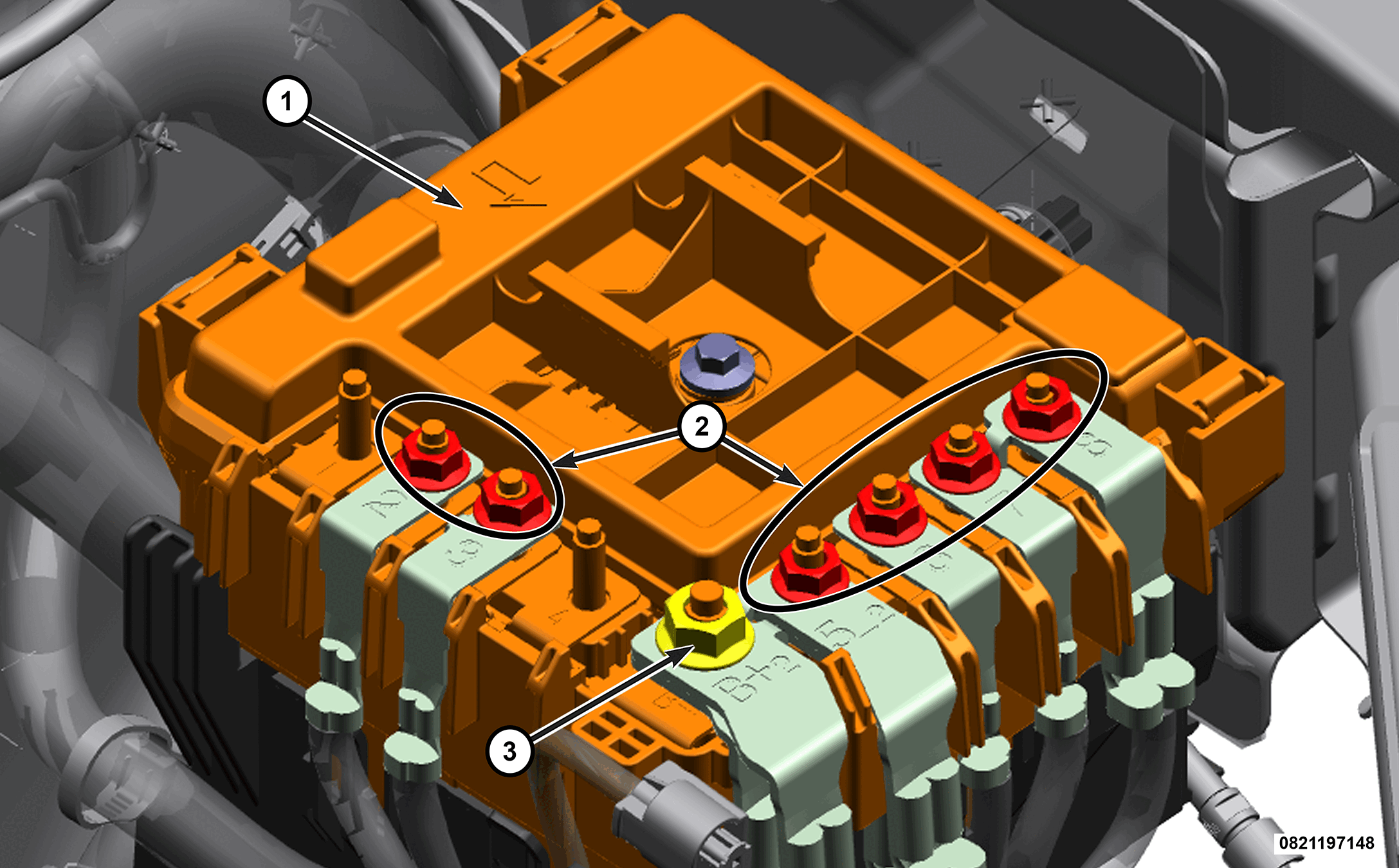

- Remove the nut (3) that secures the battery cables to the PDC. Remove the cables.
- Remove the nuts (2) that secure the power cables to the PDC. Remove the power cables.
- Loosen the screw (2) that secure the PDC wire harness connector on the underside of the PDC (1).NOTE:
These screws are captured and cannot be completely removed.

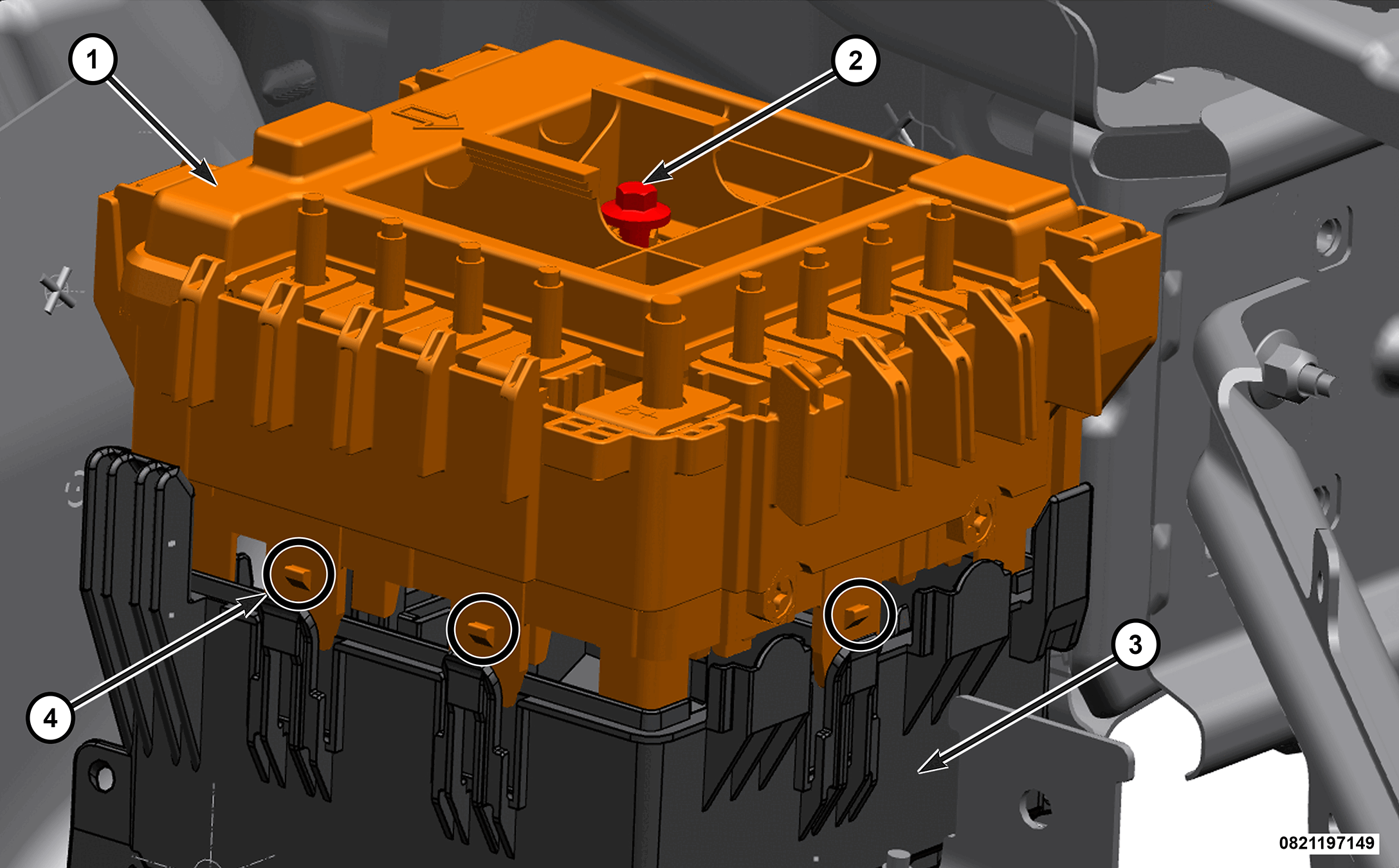

- Use a trim stick or equivalent tool to release the latches (4) that secure the PDC (1) to the PDC bracket (3) and separate the two.
- Remove the wire harness connector on the underside of the PDC by gently wiggling from side to side while pulling.
- Remove the PDC (1) from the vehicle.

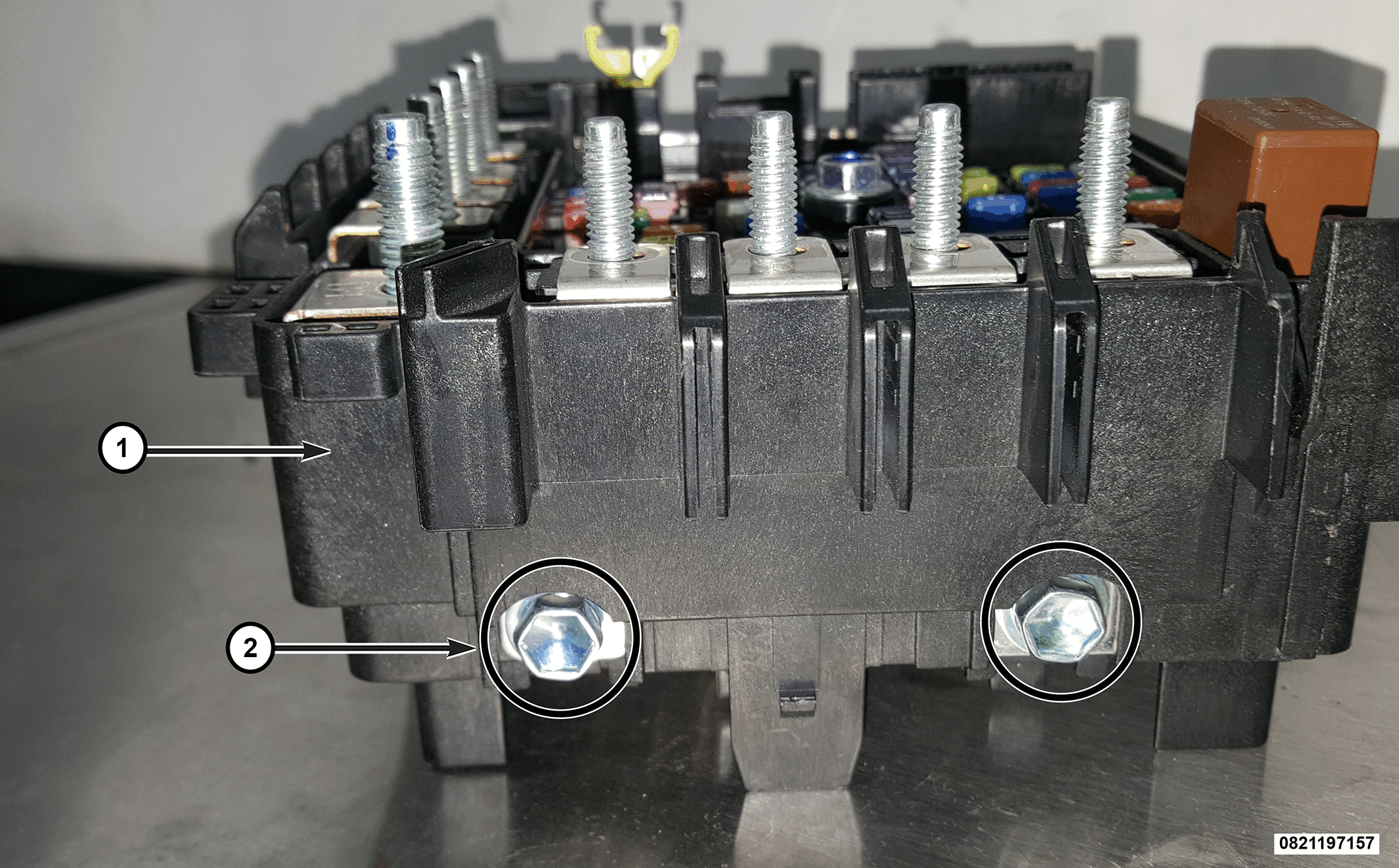

- Remove the fasteners (2).

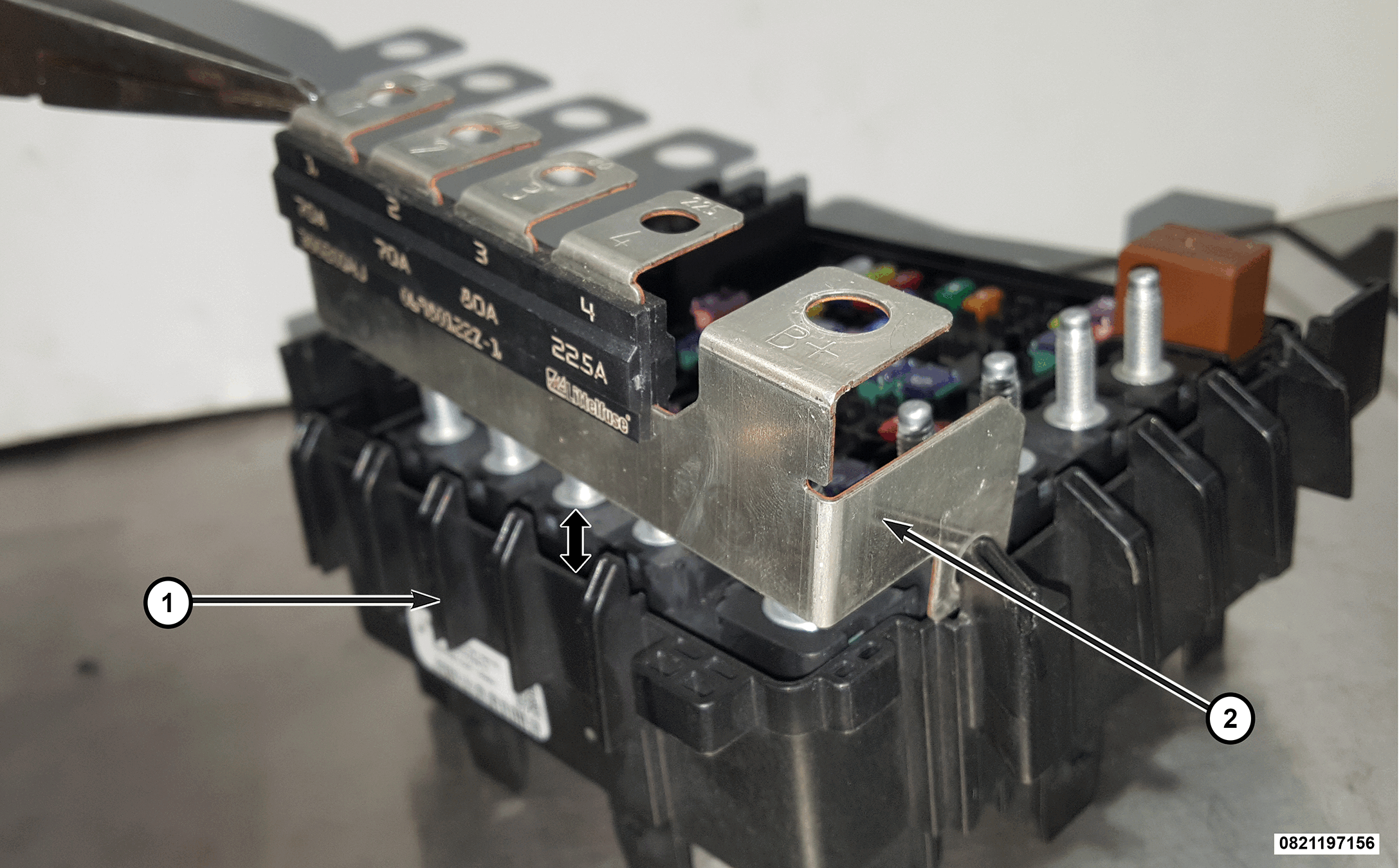

- Remove the RIGHT fuse array (2) from the PDC (1).

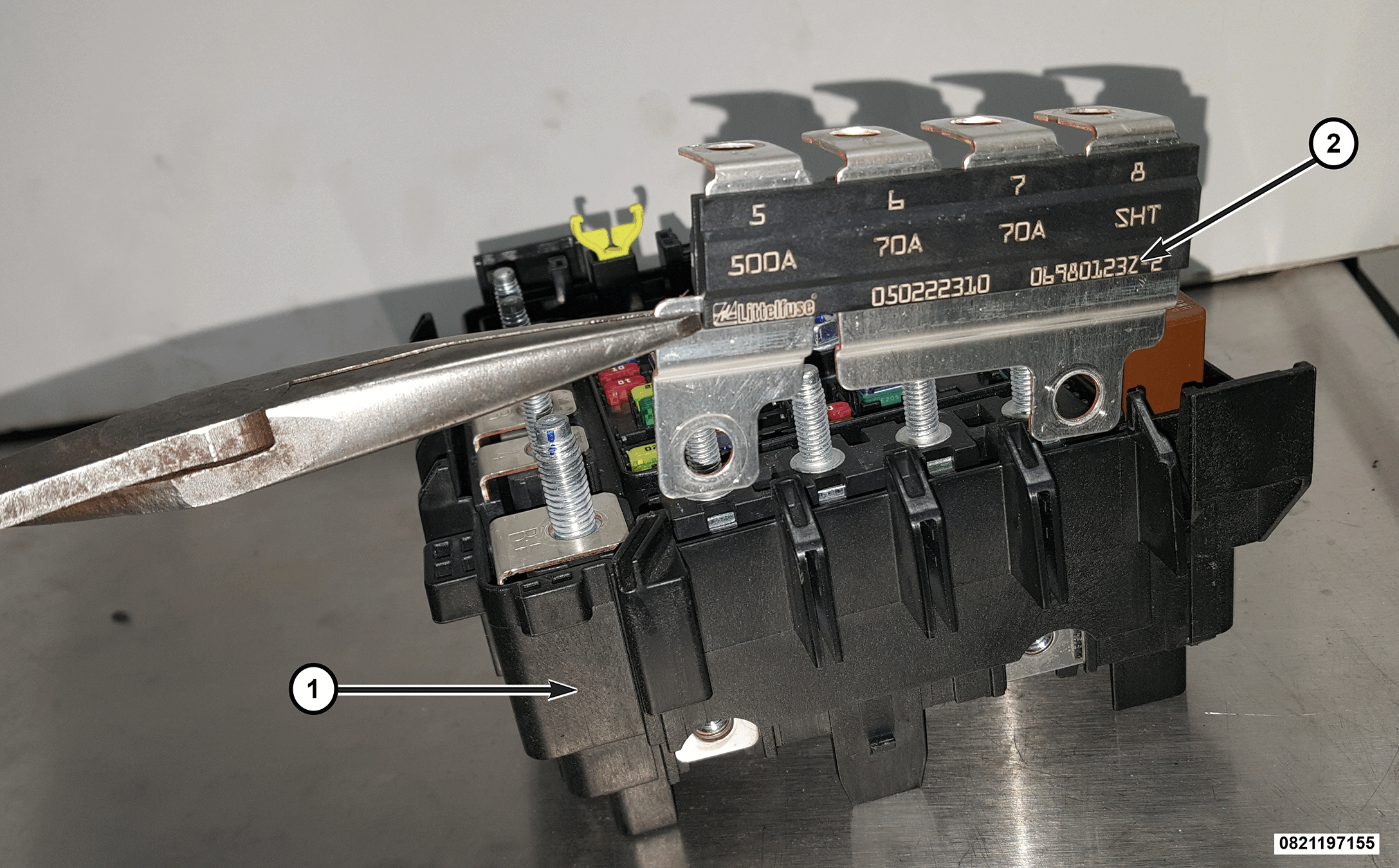

- Remove the LEFT fuse array (2) from the PDC (1).
