Torque Specifications

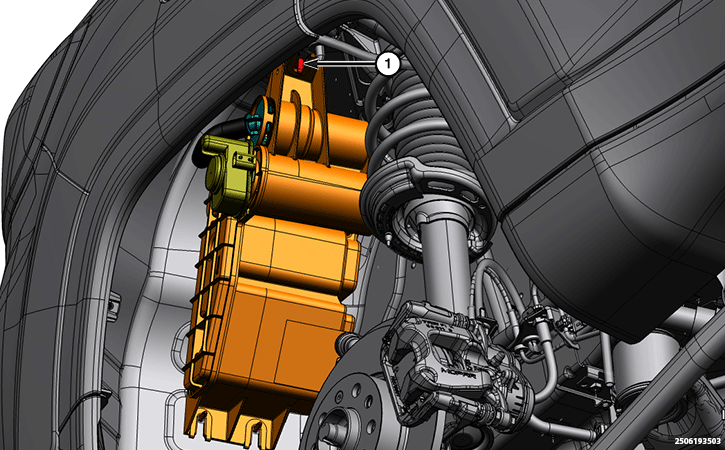

GC0206845Courtesy of CHRYSLER GROUP, LLC
TORQUE SPECIFICATIONS

CALLOUT DESCRIPTION SPECIFICATION COMMENT
1 Evaporative Canister to Vehicle - Nuts 9 Nm (80 In. Lbs.)  -
- PCV Valve 1/4 Turn  -

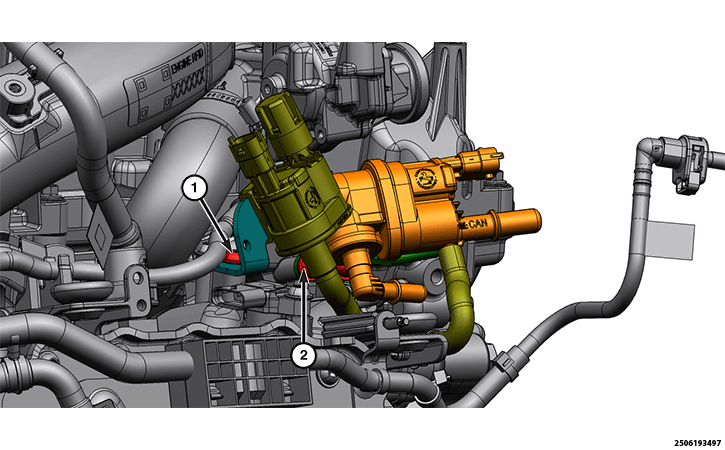

GC0206892Courtesy of CHRYSLER GROUP, LLC
CALLOUT DESCRIPTION SPECIFICATION COMMENT
1 OBD Valve Bracket Bolts Tighten Securely  -
2 Purge Valve Bracket Bolts Tighten Securely  -
