Description And Operation
DESCRIPTION
Courtesy of CHRYSLER GROUP, LLC
|

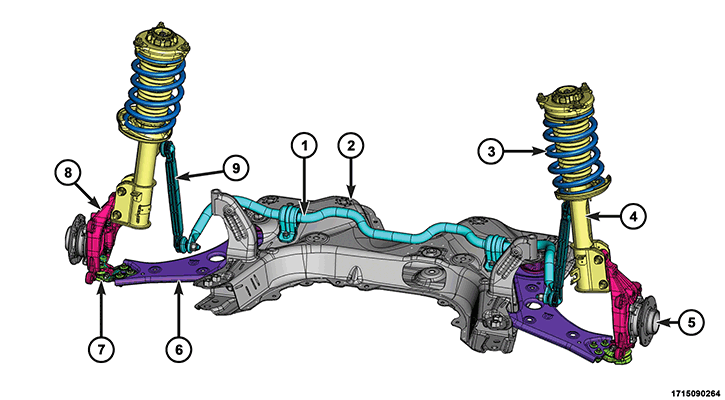

The front suspension consists of the following major components:
| 1. |
Stabilizer Bar |
| 2. |
Subframe |
| 3. |
Coil Springs |
| 4. |
Strut |
| 5. |
Hub and Bearing |
| 6. |
Lower Control Arm |
| 7. |
Lower Ball Joint |
| 8. |
Steering Knuckle |
| 9. |
Stabilizer Bar Link |
