Muffler Heat Shield: Notes
REMOVAL
- Remove the muffler. Refer to MUFFLER, EXHAUST, REMOVAL AND INSTALLATION .
- Remove the muffler heat shield.

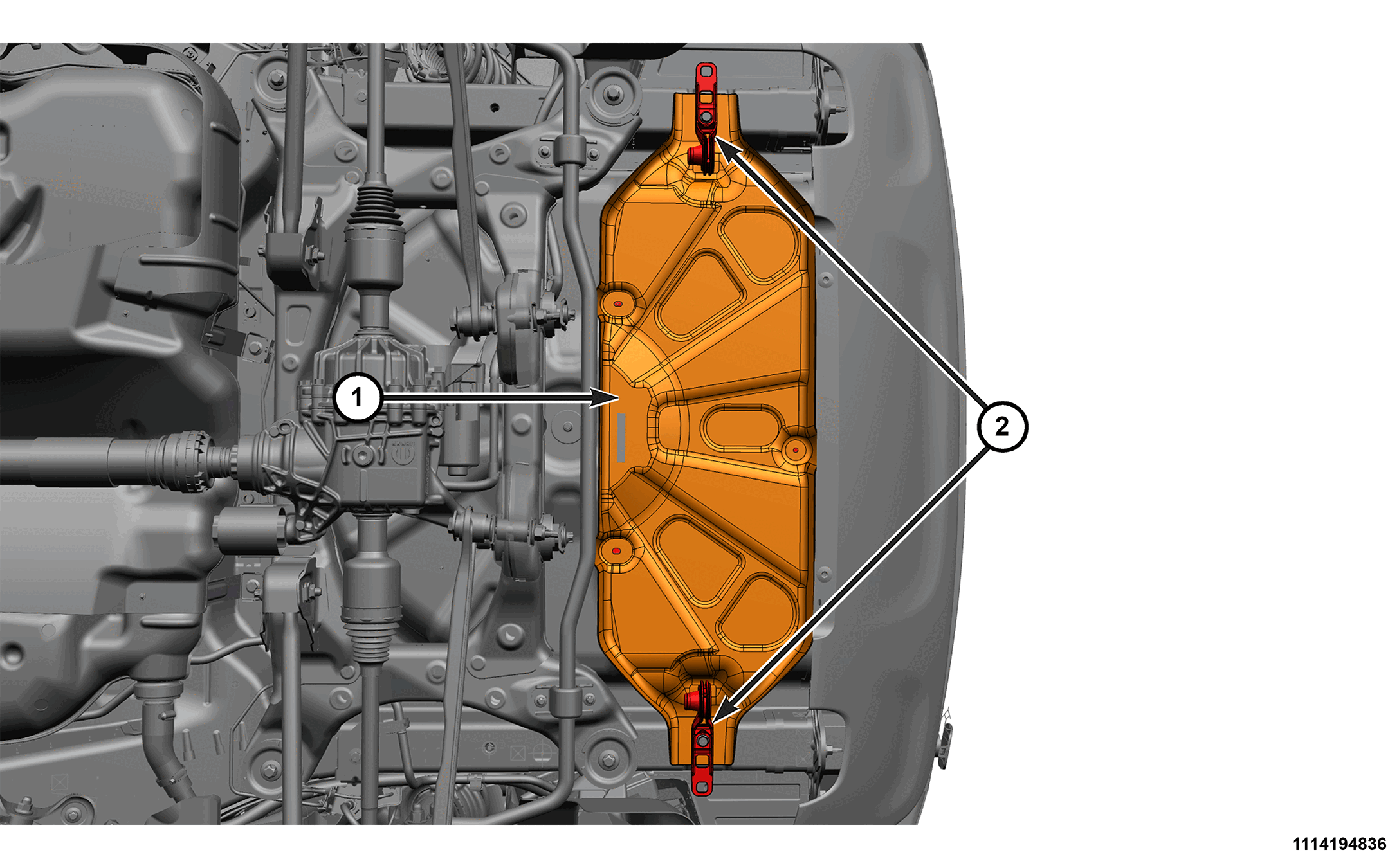

1 - Muffler Heat Shield 2 - Exhaust Isolator Hangers
INSTALLATION
Follow the removal procedure in reverse for general reassembly of the components on the vehicle.
During installation, torque the fasteners to the specifications in the torque table(s) below.
TORQUE SPECIFICATIONS
