Third Row: Notes

REMOVAL

WARNING:

To avoid serious or fatal injury during and following any seat belt or child restraint anchor service, carefully inspect all seat belts, buckles, mounting hardware, retractors, tether straps, and anchors for proper installation, operation, or damage. Replace any belt that is cut, frayed, or torn. Straighten any belt that is twisted. Tighten any loose fasteners. Replace any belt that has a damaged or ineffective buckle or retractor. Replace any belt that has a bent or damaged latch plate or anchor plate. Replace any child restraint anchor or the unit to which the anchor is integral that has been bent or damaged. Never attempt to repair a seat belt or child restraint component. Always replace damaged or ineffective seat belt and child restraint components with the correct, new and unused replacement parts listed in the Mopar® Parts Catalog. Failure to follow these instructions may result in possible serious or fatal injury.

  1. Remove the third row buckle assembly bolt from the buckle anchor.
  2. Remove the third row buckle assembly from the vehicle.

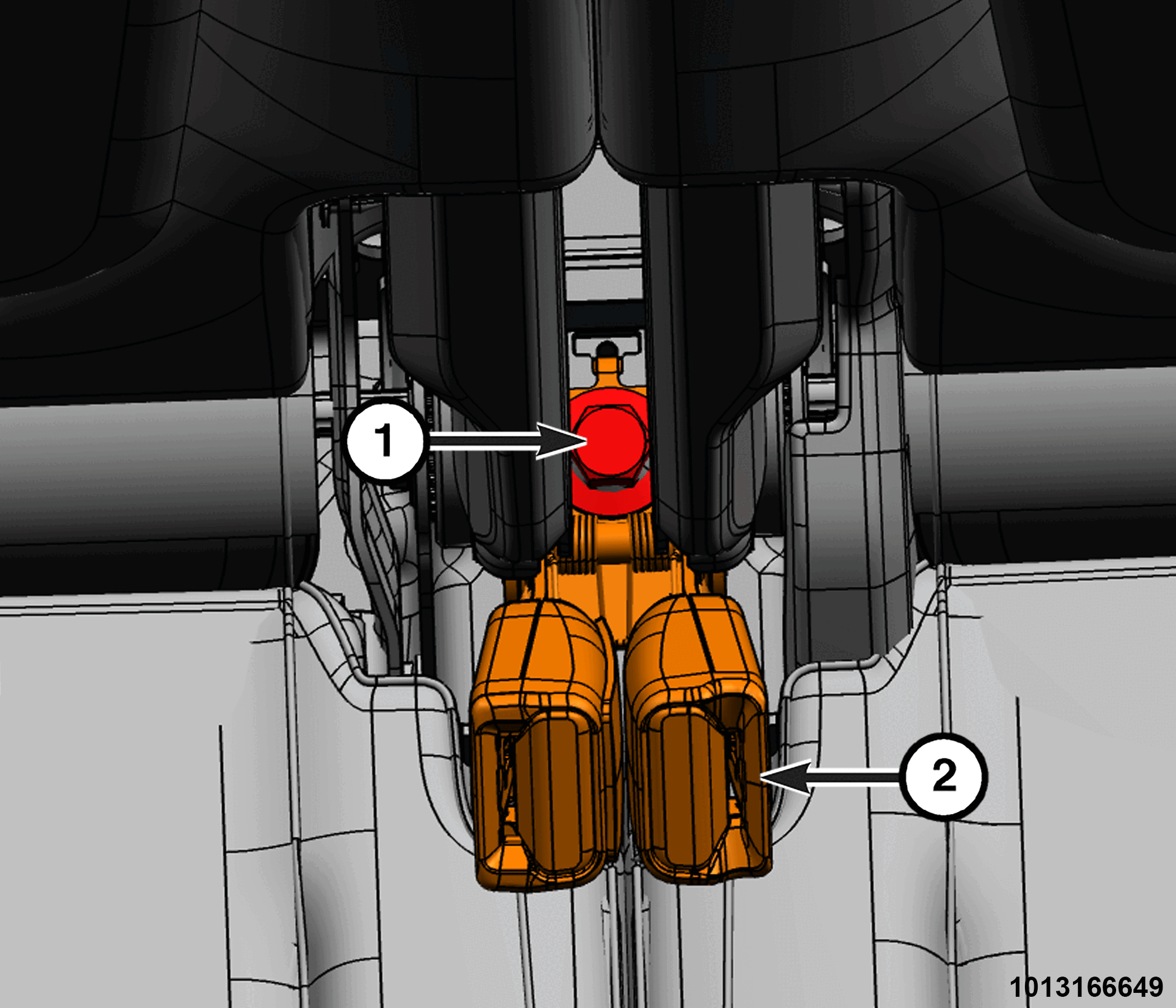

    GC0201834Courtesy of CHRYSLER GROUP, LLC
    1 - Third Row Buckle Assembly Bolt
    2 - Buckle Assembly

INSTALLATION

Follow the removal procedure in reverse for general reassembly of the components on the vehicle.
