Pin Voltage Tests

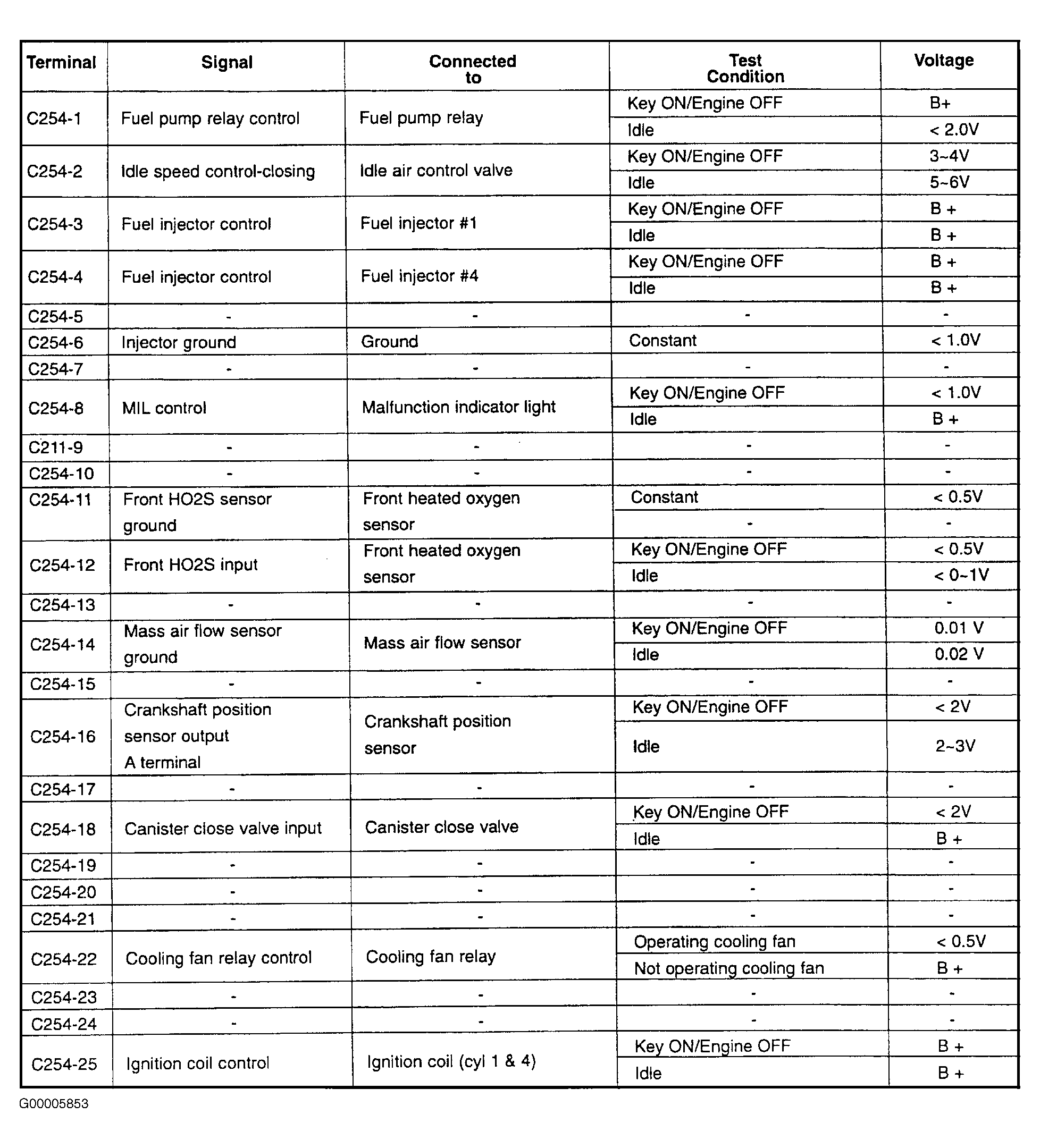

Fig 1: ECM Pin Voltage Chart (Sephia - 1 Of 4)

G00005853

Courtesy of KIA MOTORS AMERICA, INC.

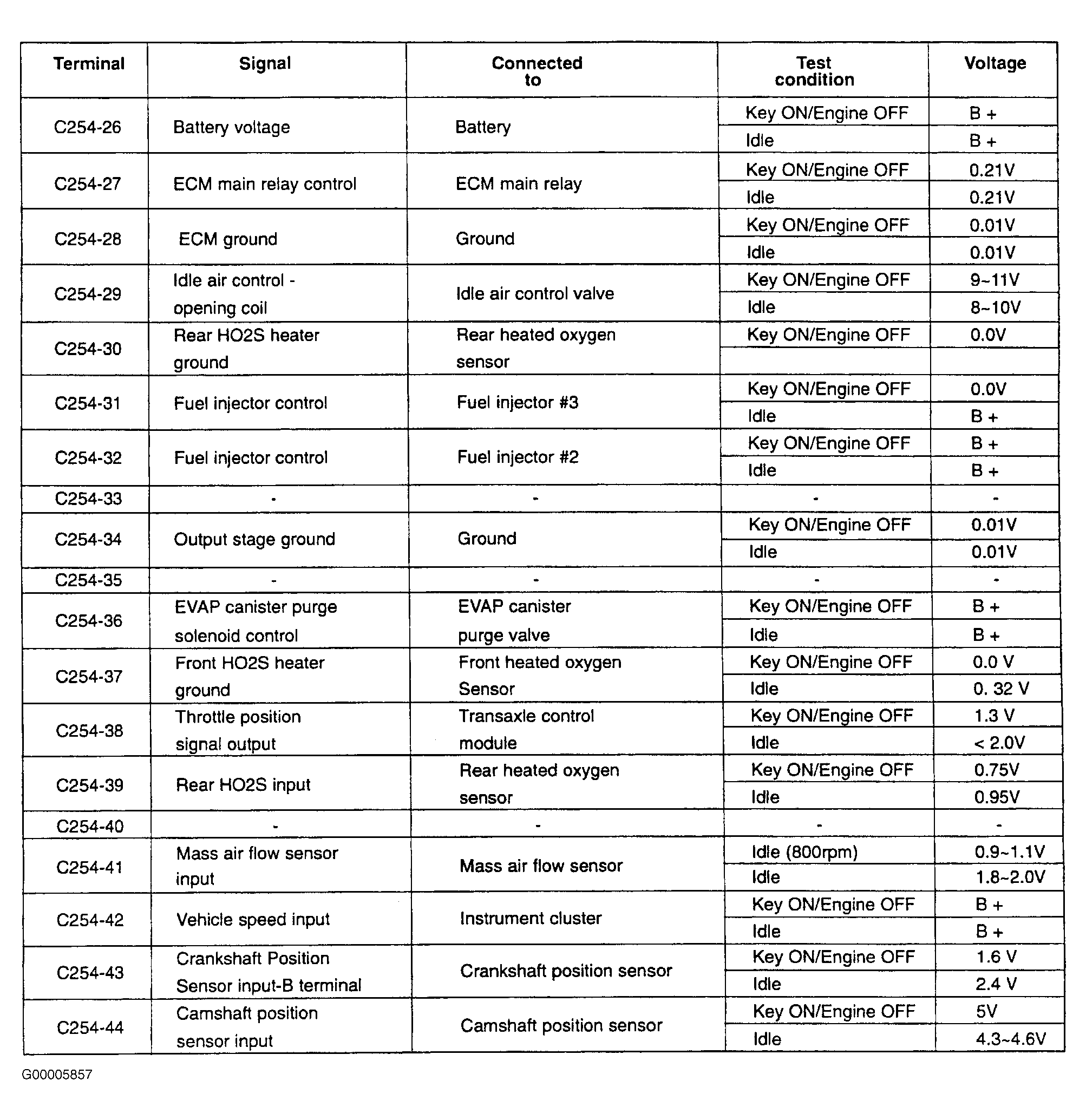

Fig 2: ECM Pin Voltage Chart (Sephia - 2 Of 4)

G00005857

Courtesy of KIA MOTORS AMERICA, INC.

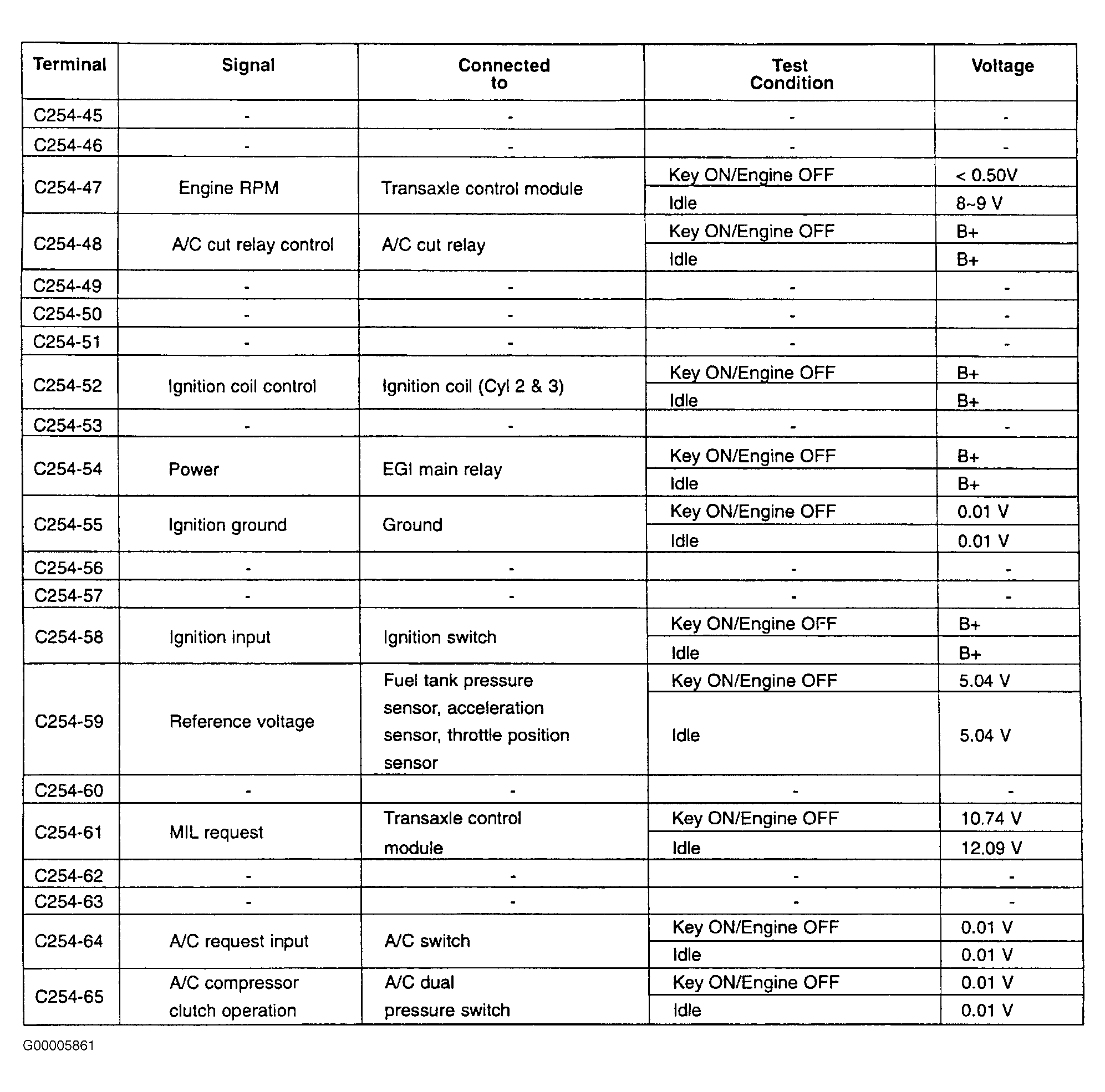

Fig 3: ECM Pin Voltage Chart (Sephia - 3 Of 4)

G00005861

Courtesy of KIA MOTORS AMERICA, INC.

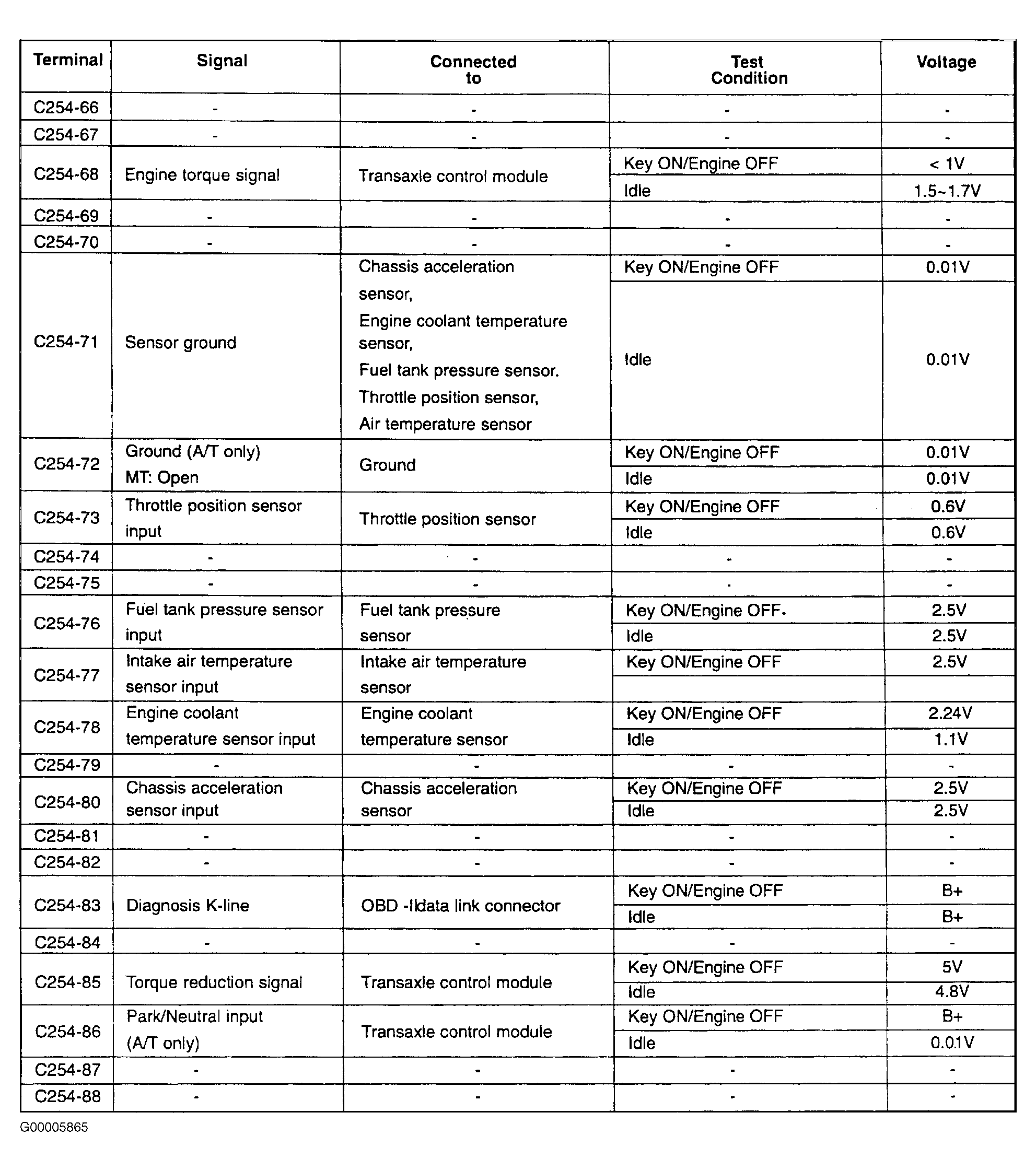

Fig 4: ECM Pin Voltage Chart (Sephia - 4 Of 4)

G00005865

Courtesy of KIA MOTORS AMERICA, INC.

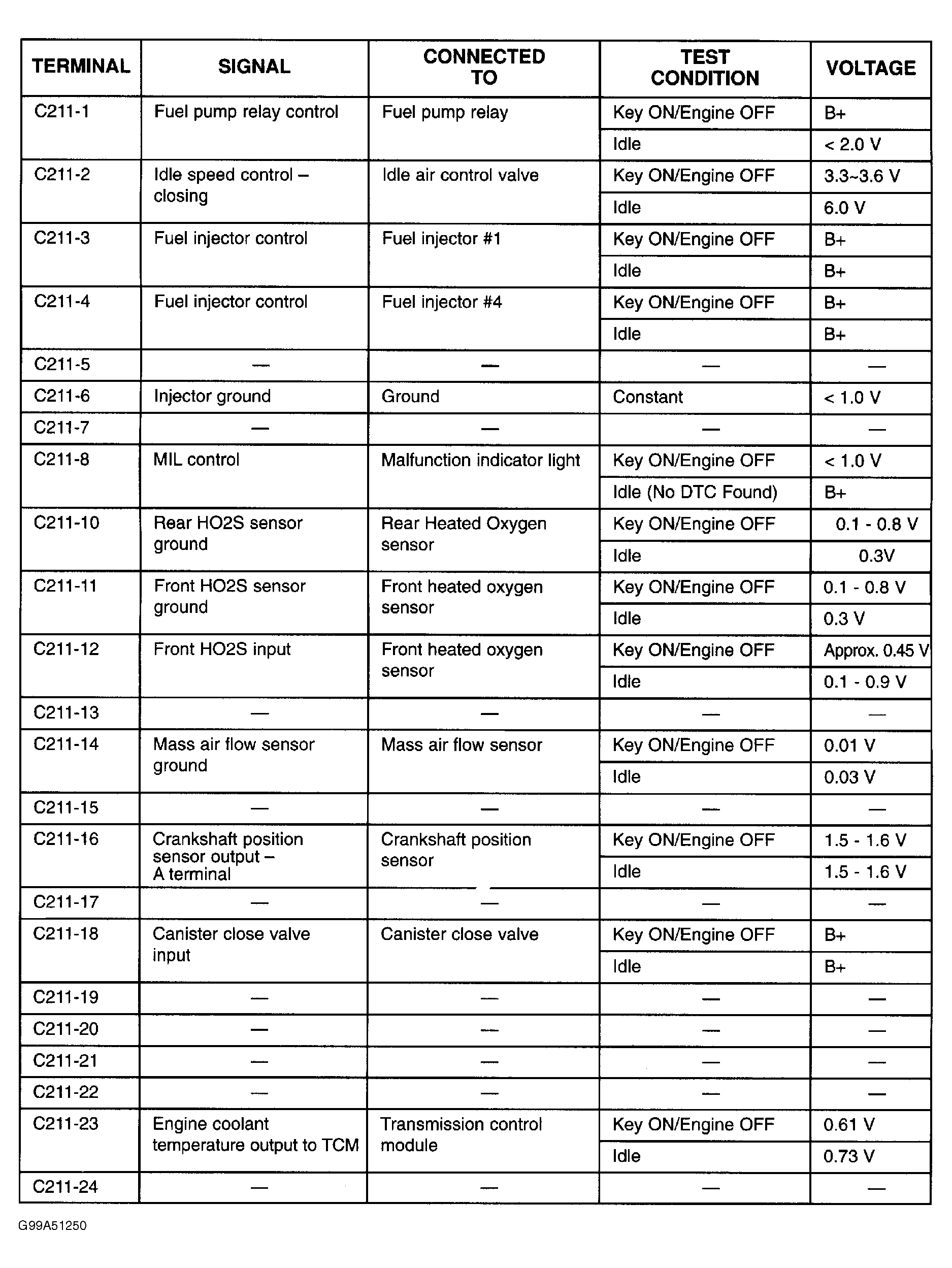

Fig 5: ECM Pin Voltage Chart (Sportage - 1 Of 4)

G99A51250

Courtesy of KIA MOTORS AMERICA, INC.

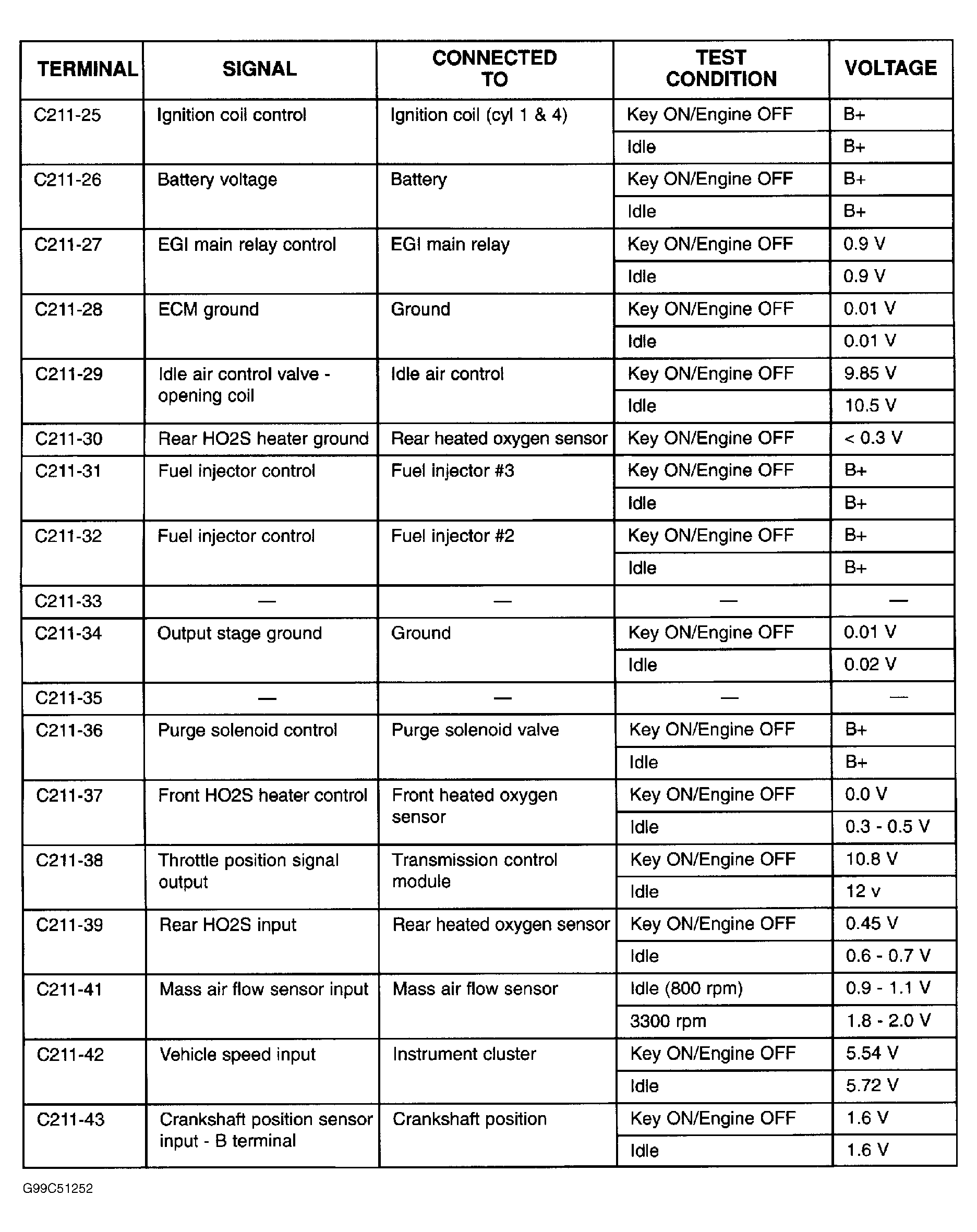

Fig 6: ECM Pin Voltage Chart (Sportage - 2 Of 4)

G99C51252

Courtesy of KIA MOTORS AMERICA, INC.

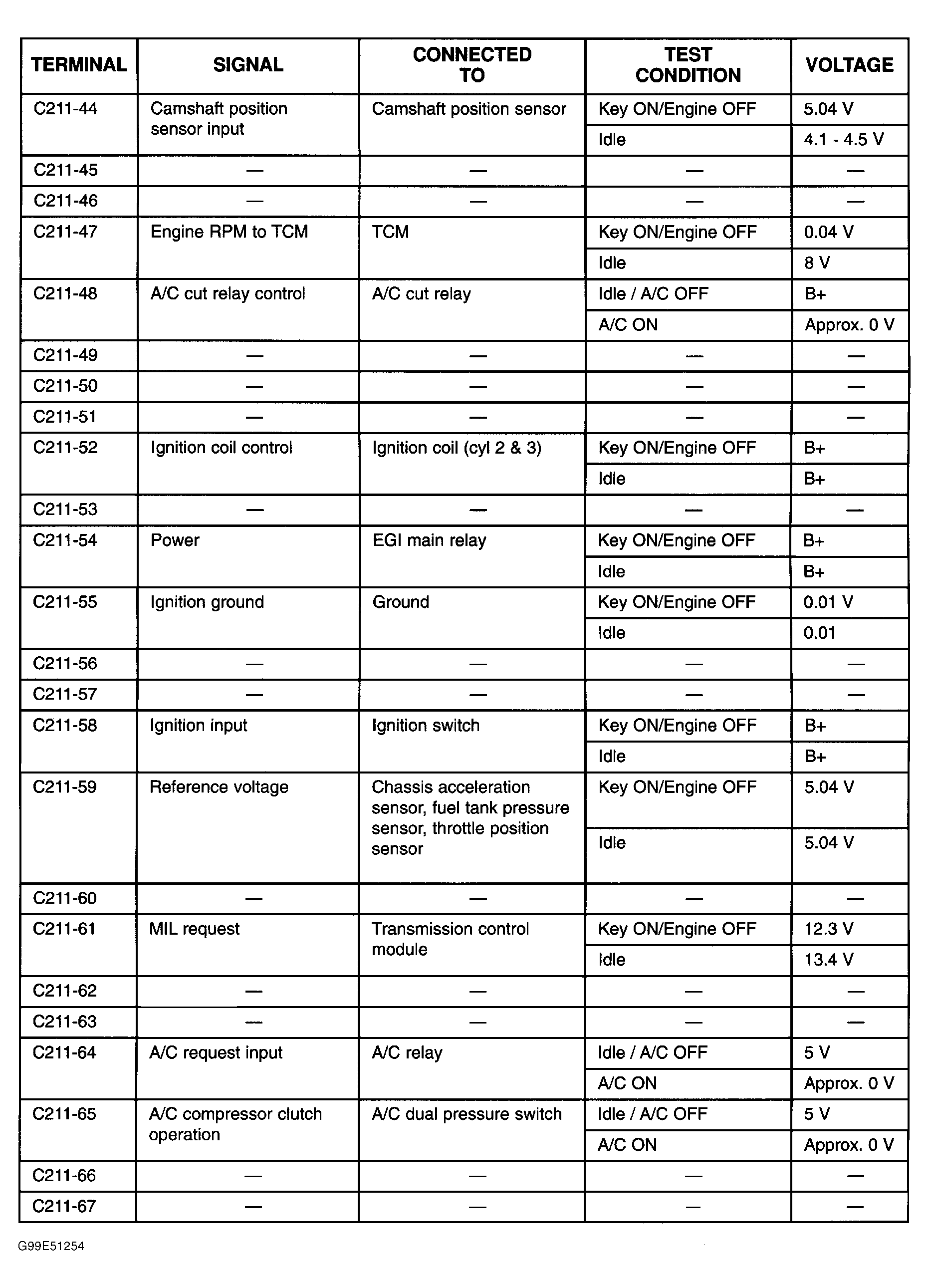

Fig 7: ECM Pin Voltage Chart (Sportage - 3 Of 4)

G99E51254

Courtesy of KIA MOTORS AMERICA, INC.

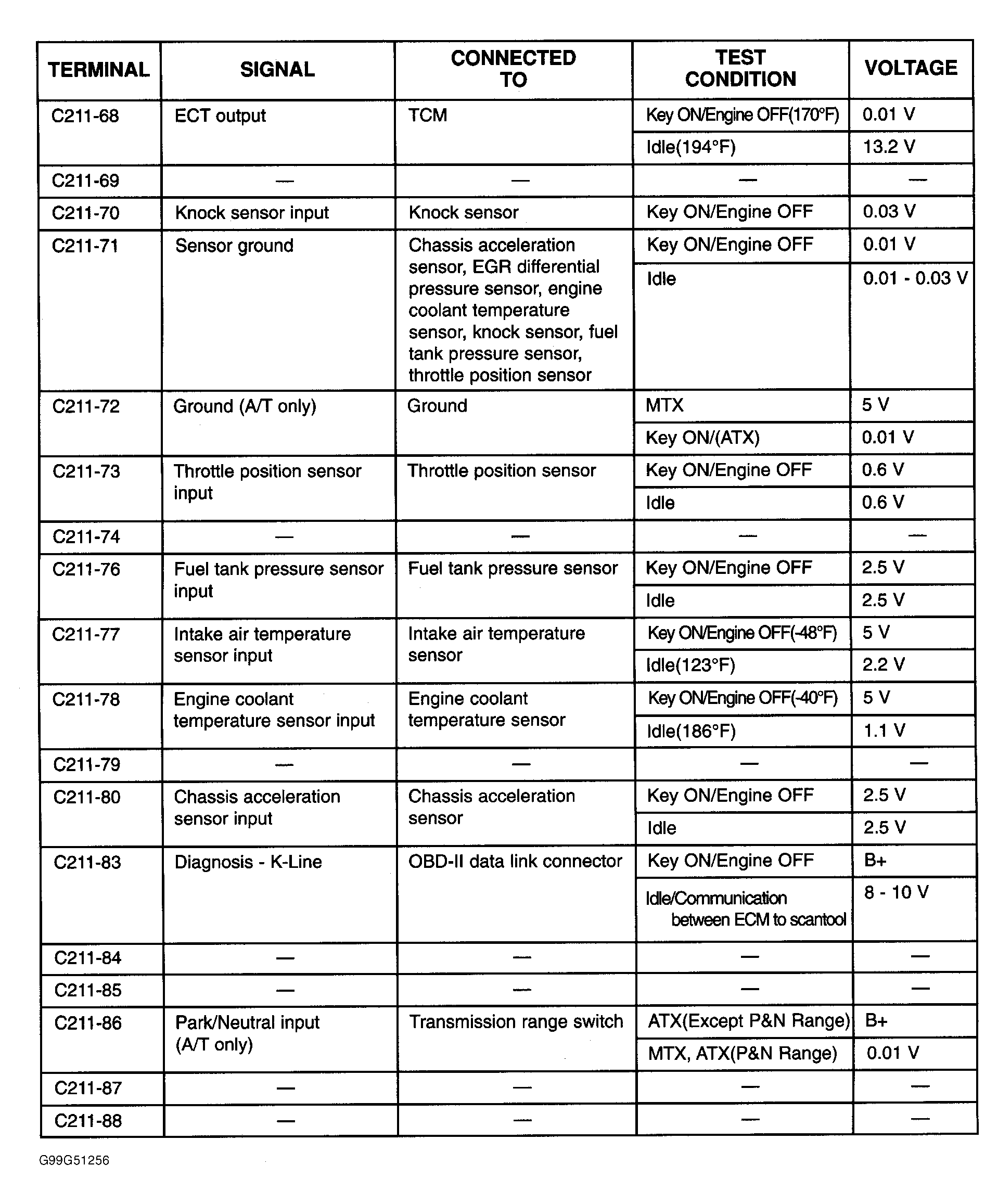

Fig 8: ECM Pin Voltage Chart (Sportage - 4 Of 4)

G99G51256

Courtesy of KIA MOTORS AMERICA, INC.
