Heater Control Unit

REMOVAL




1. Disconnect negative battery cable.
2. Remove ash tray.
3. Remove center panel trim.
4. Remove instrument cluster trim.
5. Remove grove box.

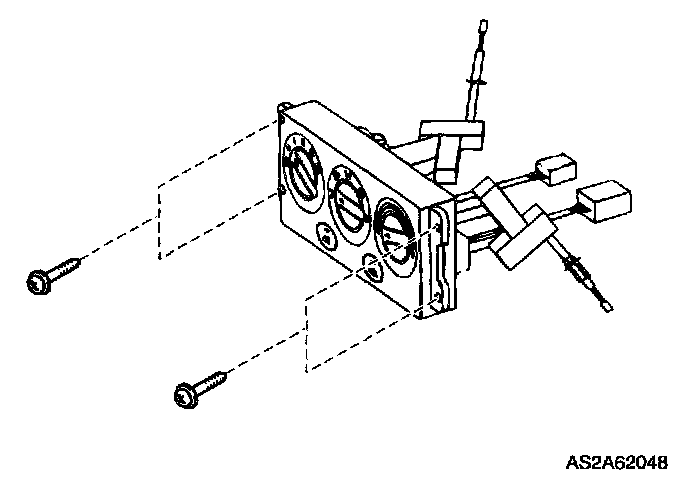

6. Remove heater control unit.

INSTALLATION

Install in reverse of removal.
