Air Flow Meter/Sensor: Service and Repair

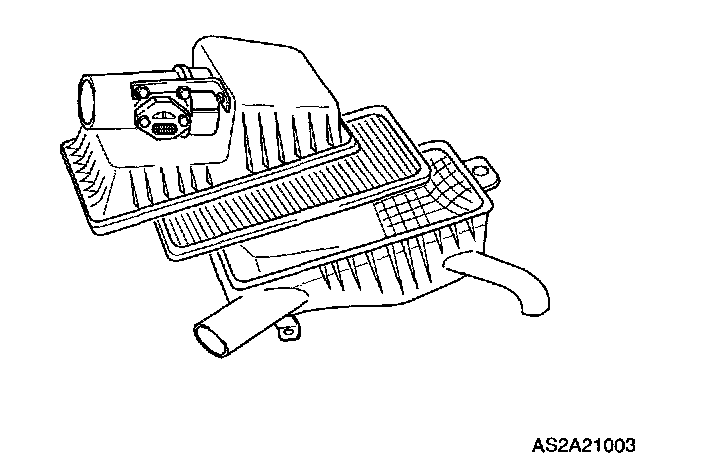

REMOVAL






1. Disconnect connector from mass air flow sensor by depressing the spring latch.
2. Loosen hose clamp and disconnect air intake hose from sensor.
3. Remove two bolts from sensor bracket.
4. Remove sensor from air cleaner housing.


INSTALLATION
1. Install mass air flow sensor onto air cleaner housing and tighten two bolts.
2. Reconnect air intake hose to sensor and tighten clamp.
3. Reconnect mass air flow sensor connector.
