Power Mirror Control Module: Testing and Inspection

1. Remove the panel that the power mirror controller is installed in by taking out the single screw located at its right edge. Remove the controller by disconnecting its connector and taking out the three mounting screws.

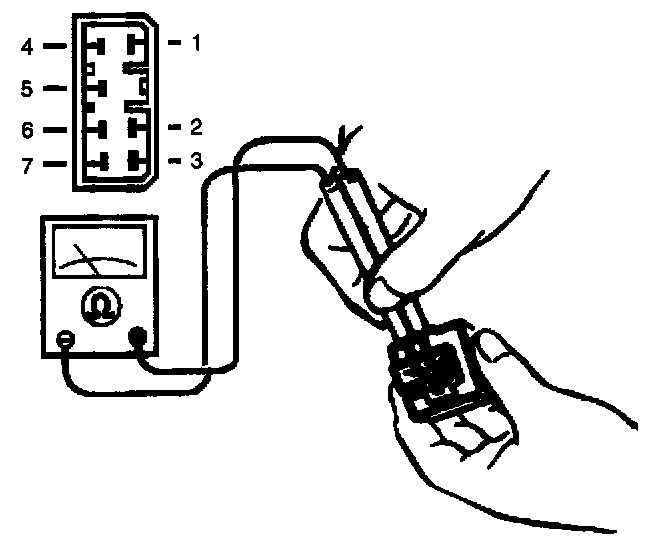

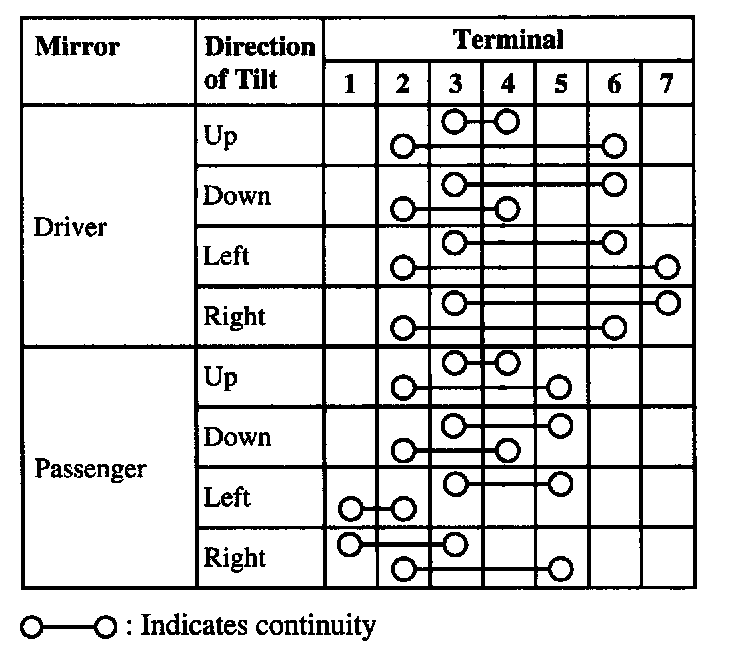

2. Check for continuity between controller terminals as indicated.
3. If continuity is not as specified, replace the power mirror control.
