Cruise Control Switch: Service and Repair

Cruise Main and Interior Light Dimmer Switches
REMOVAL

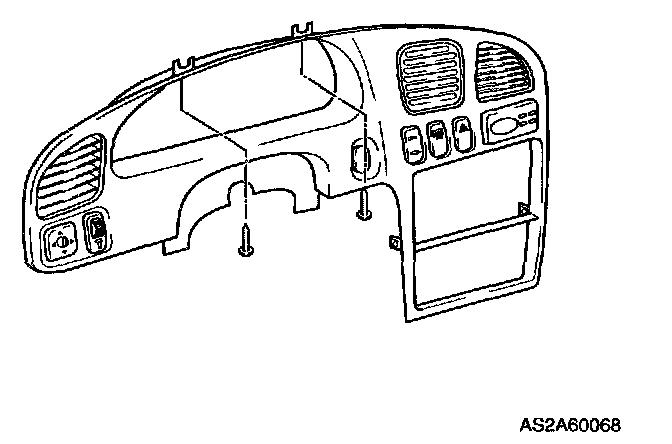

1. Remove instrument cluster trim.

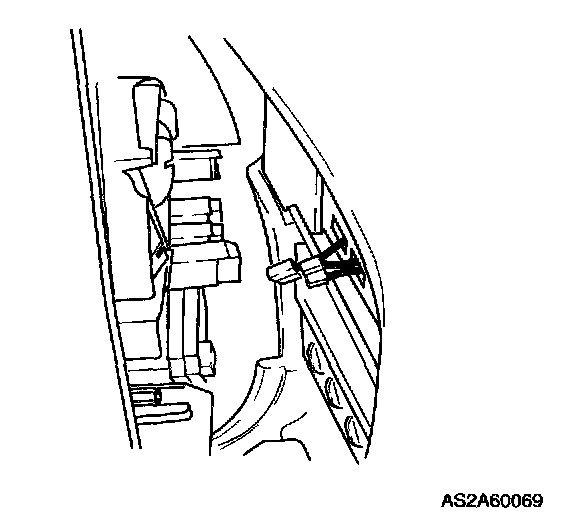

2. Press switch mounting tabs while pushing on switch until tabs clear trim.
3. Remove switch from trim.
4. Replace switch as necessary.

INSTALLATION

1. Mount switch in mounting hole.
2. Push switch into its mounting hole in cover until tabs snap into place.
