In-Line Connectors

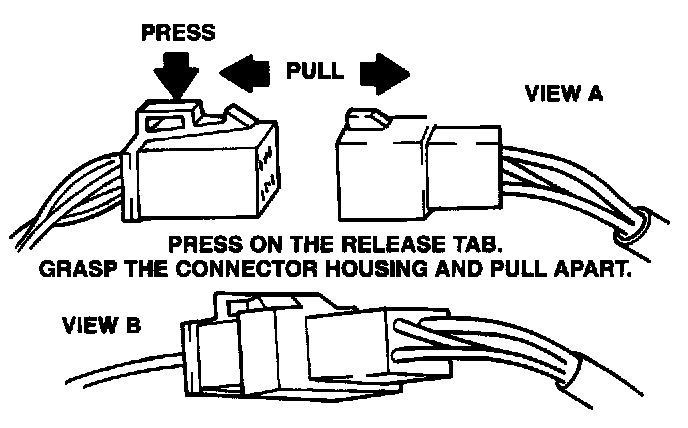

The following illustrations show typical electrical connectors and their disengagements.

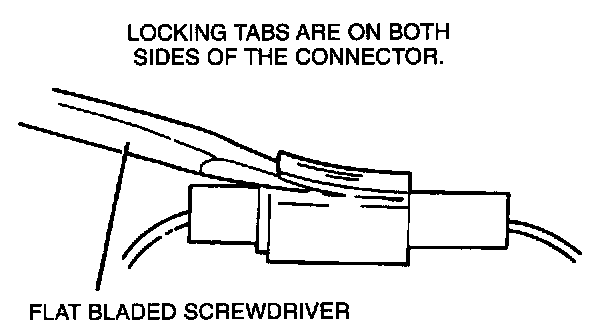

- Insert a flat blade screwdriver in the locking tab and twist.




- Grasp the connector housing and pull until the locking tab is on the ramp.
Turn the connector over and repeat the procedure on the opposite side of the connector.
