System Specifications

Gear Ratio:
First Gear 2.800:1
Second Gear 1.540:1
Third Gear 1.000:1
Fourth Gear 0.700:1
Reverse 2.333:1
Final Gear Ratio 3.833:1

Fig. 23 Flywheel Tightening Sequence:

FLYWHEEL OR FLEXPLATE MOUNT BOLTS
Torque 71 - 75.9 ft. lbs. (97 - 103 Nm, 9.8 - 10.5 kg-m)

Tighten bolts in two or three steps to the specified torque.

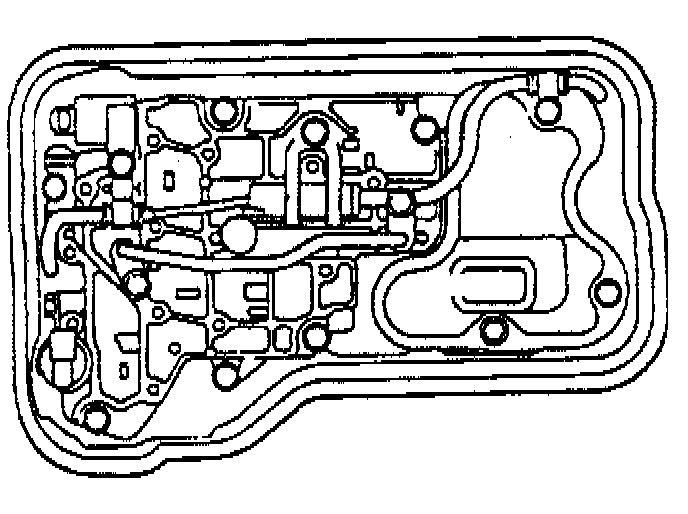

TRANSMISSION OIL PAN
Torque 74.4-94.8 inch lbs. (8.4-10.7 Nm)
