System Specifications

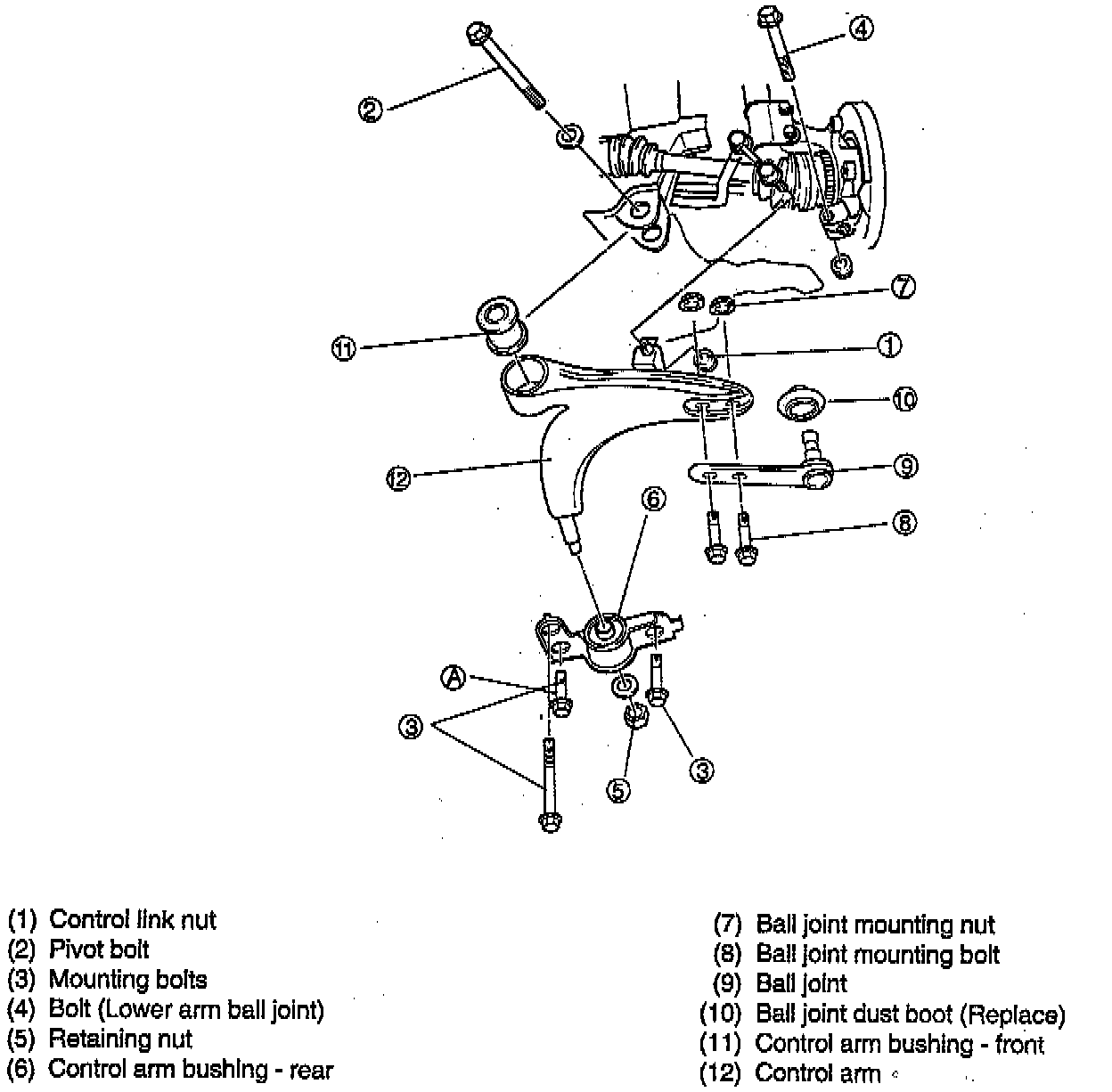

TIGHTENING SPECIFICATIONSFront:
Pivot Bolt: 69-86 ft. lbs. (93-117 Nm)
Rear:
Mounting Bolts: 69-86 ft. lbs. (93-117 Nm)
Mounting Bolts (A): 40-50 ft. lbs. (54-68 Nm)
Front:
Pivot Bolt: 69-86 ft. lbs. (93-117 Nm)
Rear:
Mounting Bolts: 69-86 ft. lbs. (93-117 Nm)
Mounting Bolts (A): 40-50 ft. lbs. (54-68 Nm)
