Rear Engine Plate

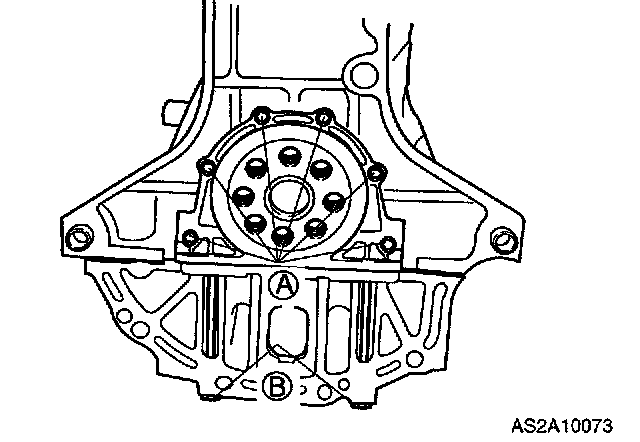

Rear Cover Bolts:
Bolt A: 5.8 - 8.0 ft. lbs. (7.8 - 10.8 Nm)
Bolt B: 29.7 - 40.5 ft. lbs. (40.2 - 54.9 Nm)
