Sephia & Spectra

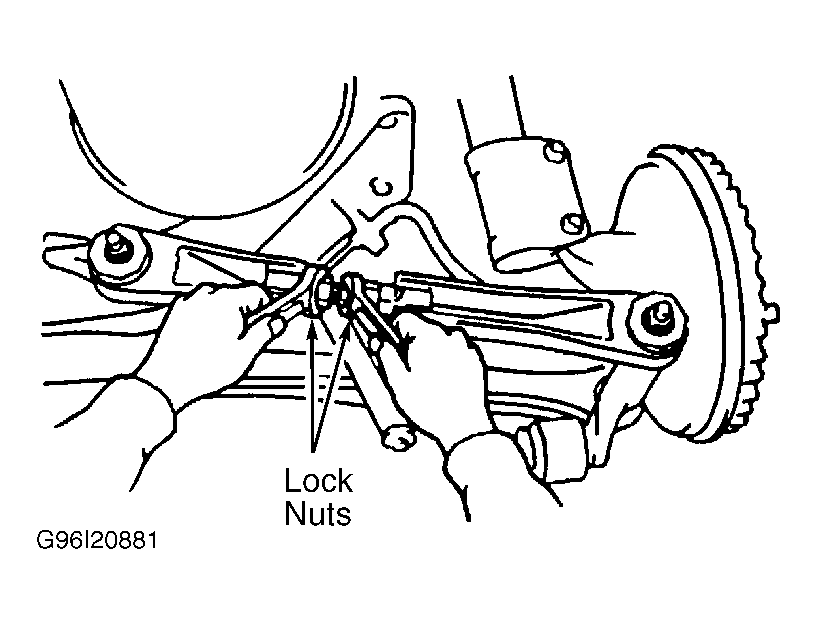

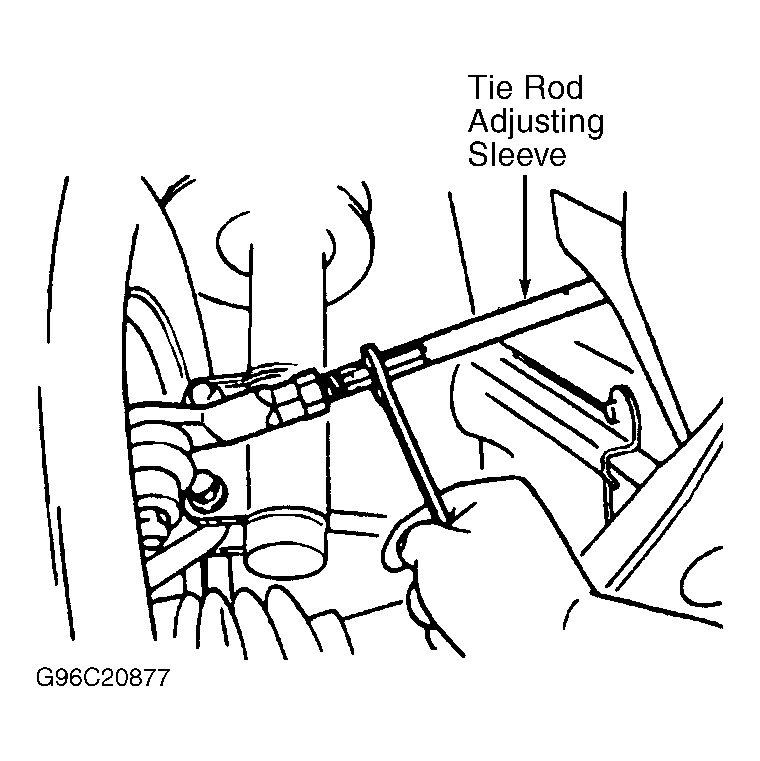

- Ensure riding height, camber and caster are within specifications. Measure toe-in of front and rear wheels. If adjustment is necessary, loosen tie rod end lock nuts. Turn tie rod adjusting sleeve to bring toe-in to desired specification. See Fig 1 or Fig 2
. See WHEEL ALIGNMENT SPECIFICATIONS .
- Tighten lock nuts to specification. Jounce vehicle and ensure that toe-in adjustment remained at desired specification. See TORQUE SPECIFICATIONS . Repeat as necessary.
Courtesy of KIA MOTORS AMERICA, INC.
Courtesy of KIA MOTORS AMERICA, INC.
