System Diagram

TIMING BELT ALIGNMENT MARKS

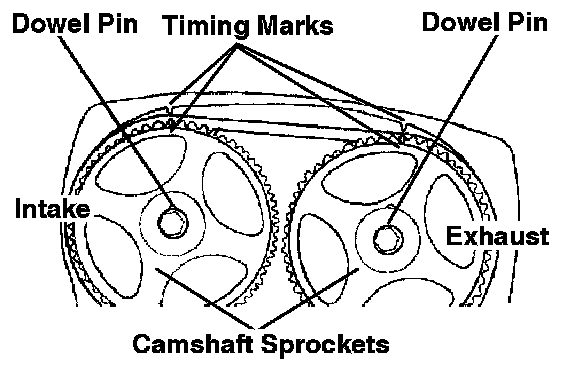

Camshaft Sprockets

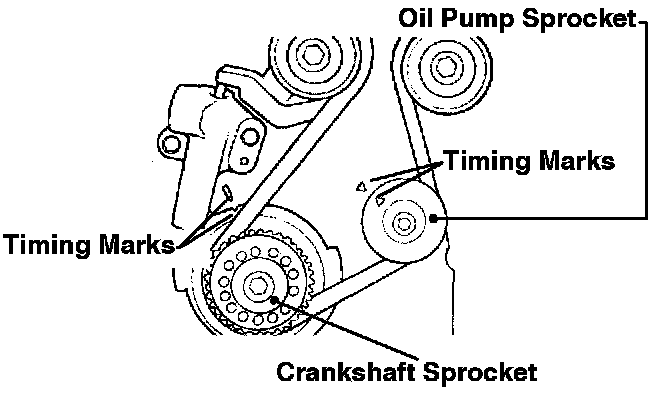

Crankshaft and Oil Pump Sprockets

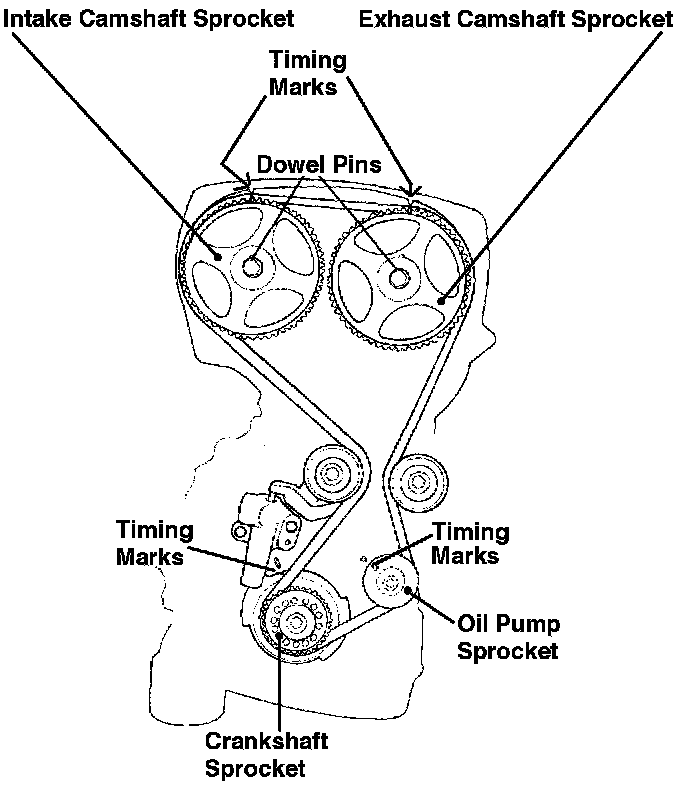

Full Belt Diagram
