Connector Views

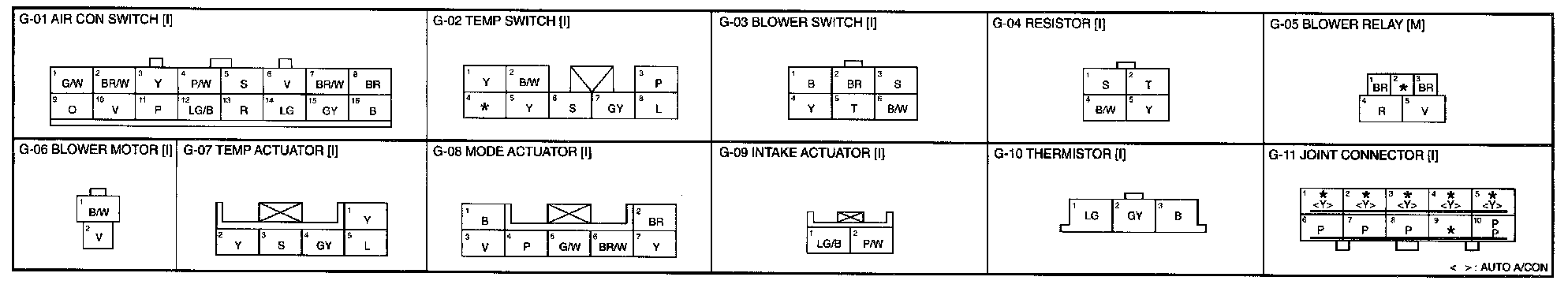

G-1 - Blower And Air Conditioner System (Manual) Connectors:

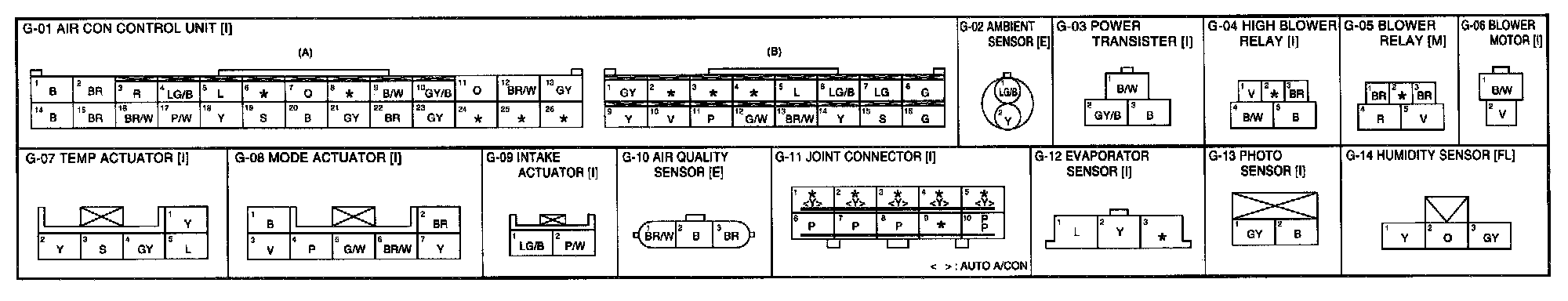

G-2 - Blower And Air Conditioner System (Automatic) Connectors:
