H-1A - Automatic Transaxle Control System

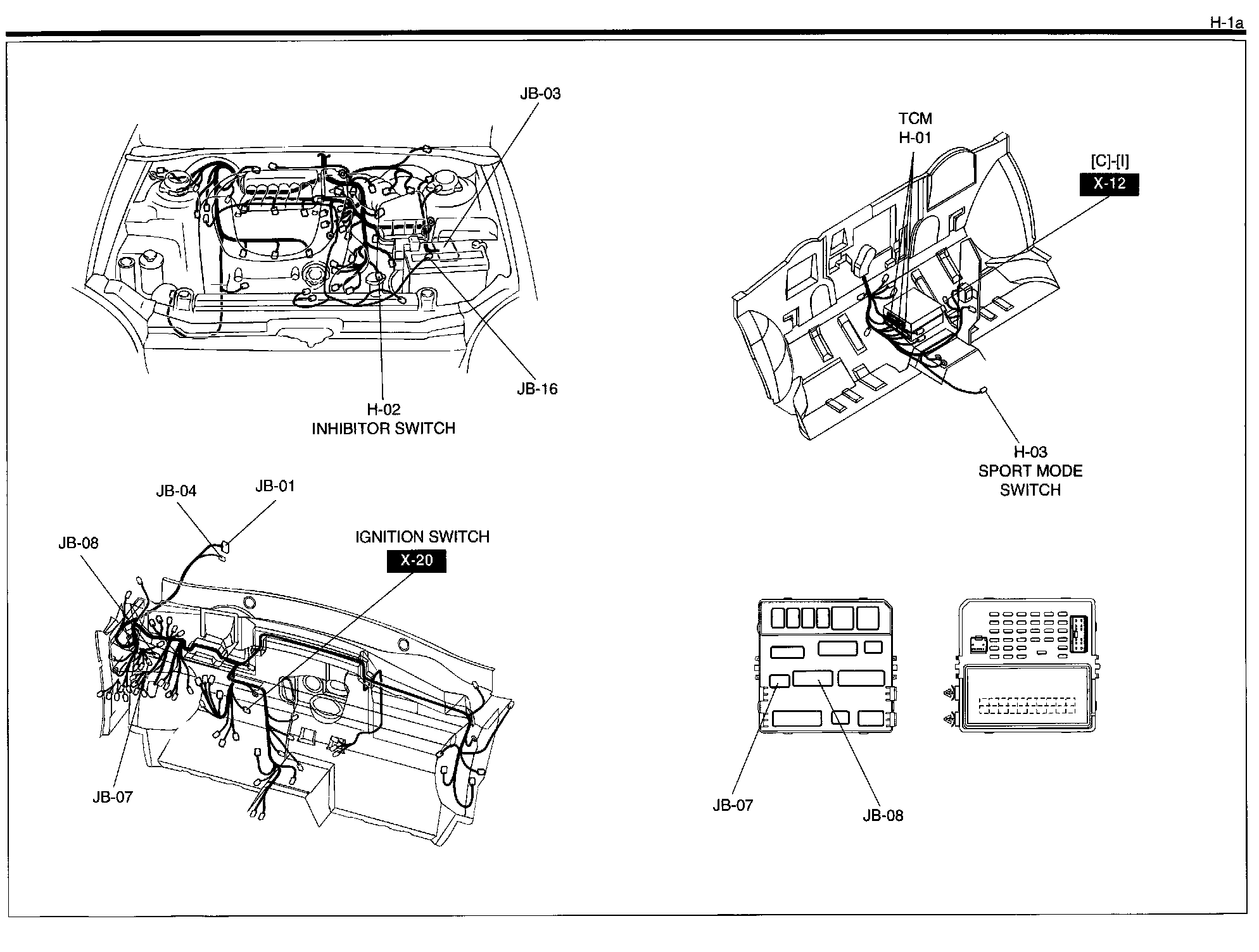

H-1a - Automatic Transaxle Control System Harness/Connector Symbols:
