Power Steering Pressure Switch: Testing and Inspection

POWER STEERING PRESSURE (PSP) SWITCH
The power steering oil pressure switch senses the power steering load into low/high voltage and inputs it to ECM, which then controls the idle speed control motor based on this signal.

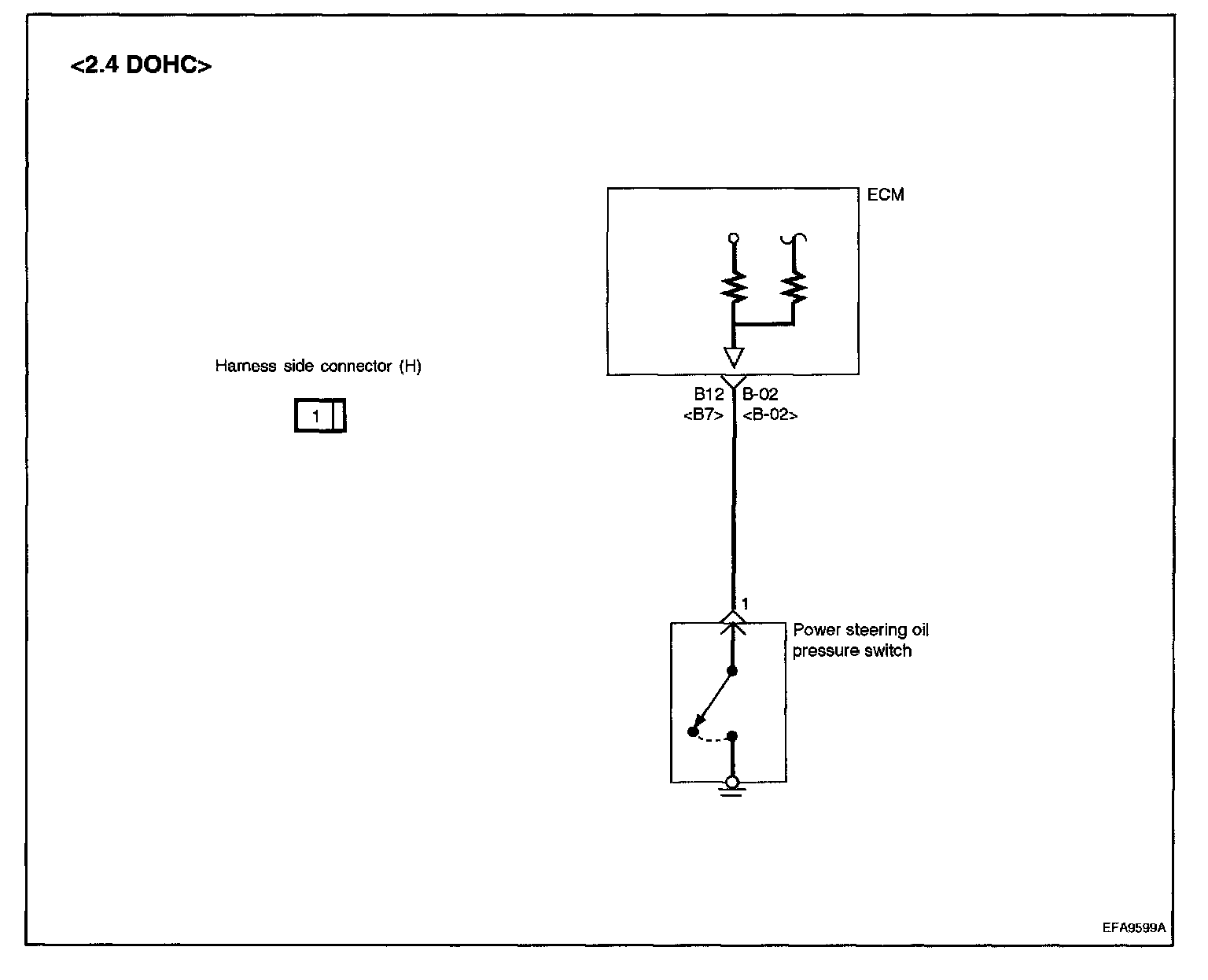

CIRCUIT DIAGRAM

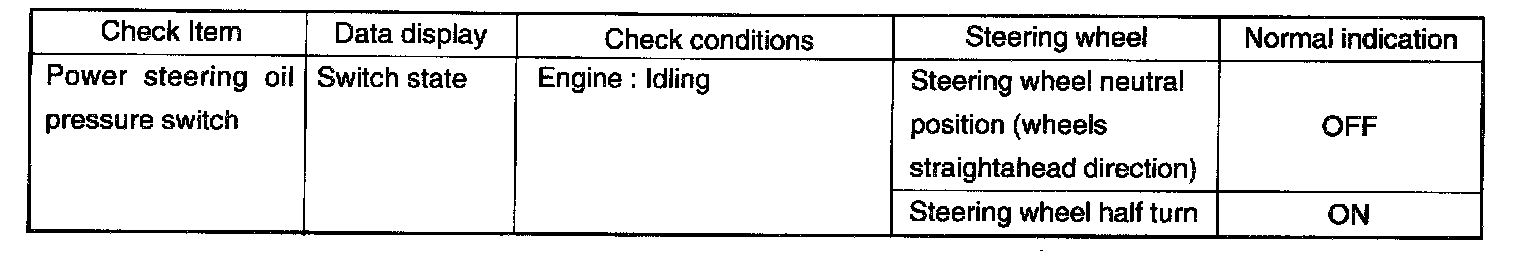

Using HI-SCAN

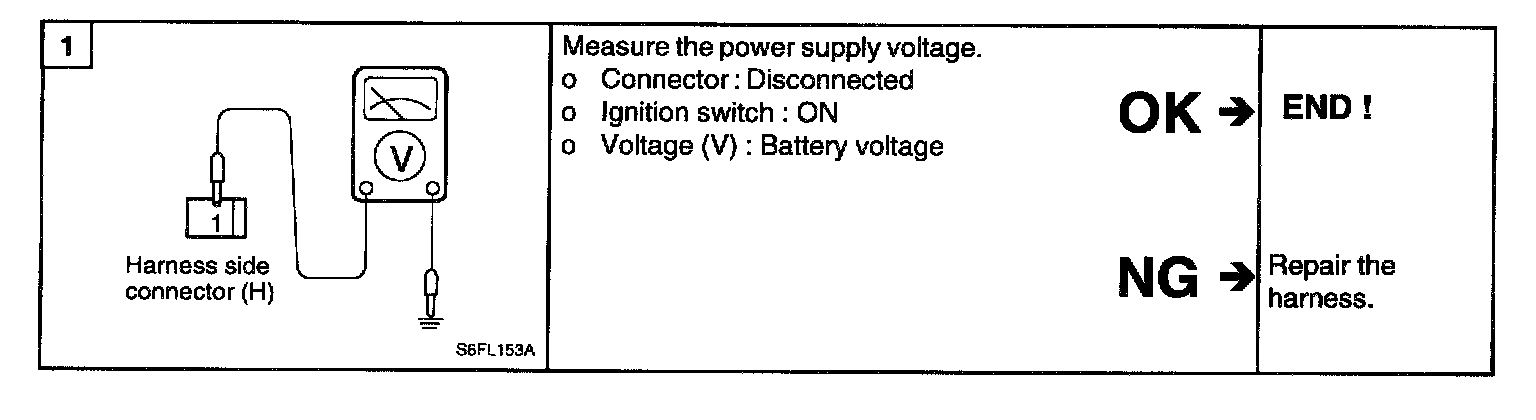

Harness Inspection:

HARNESS INSPECTION
