System Specifications

Generator:

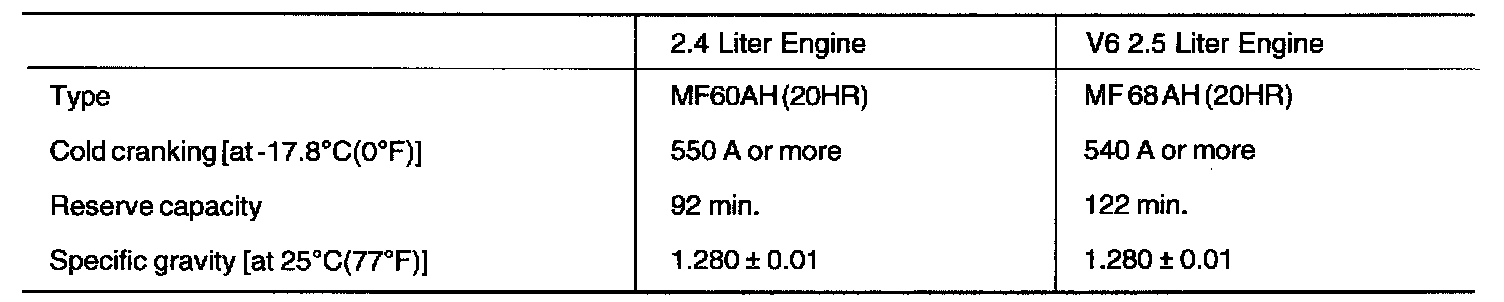

Battery:

NOTE: COLD CRANKING AMPERAGE is the amperage a battery can deliver for 30 seconds and maintain a terminal voltage of 1.2 or greater at a specified temperature. RESERVE CAPACITY RATING is the amount of time a battery can deliver 25 A and maintain a minimum terminal voltage of 10.5 at 26.7 °C (80 °F).
