System Diagram

B-2a - Engine/Transaxle Control System (ECM/TCM) Connectors:



B-2b - Engine/Transaxle Control System (ECM/TCM) Connectors:



B-2c - Engine/Transaxle Control System (ECM/TCM) Connectors:



B-2d - Engine/Transaxle Control System (ECM/TCM) Connectors:

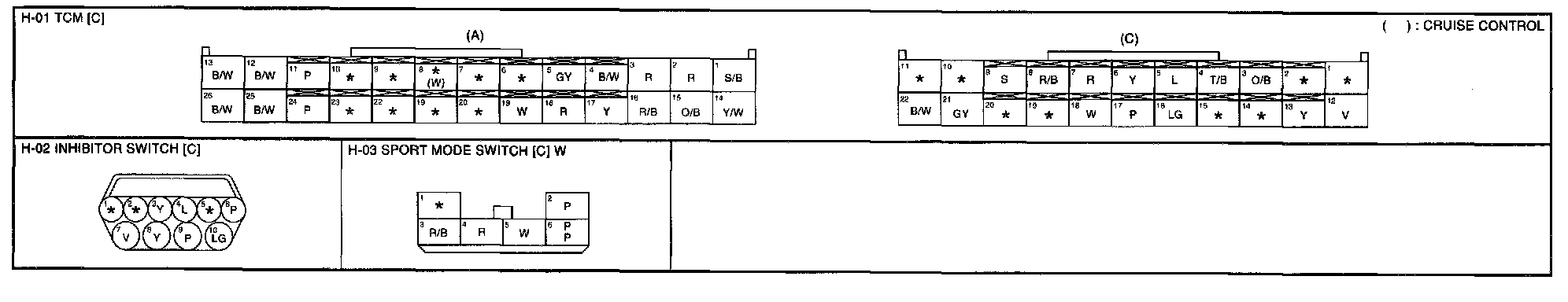

H-1a - Automatic Transaxle Control System Connectors:

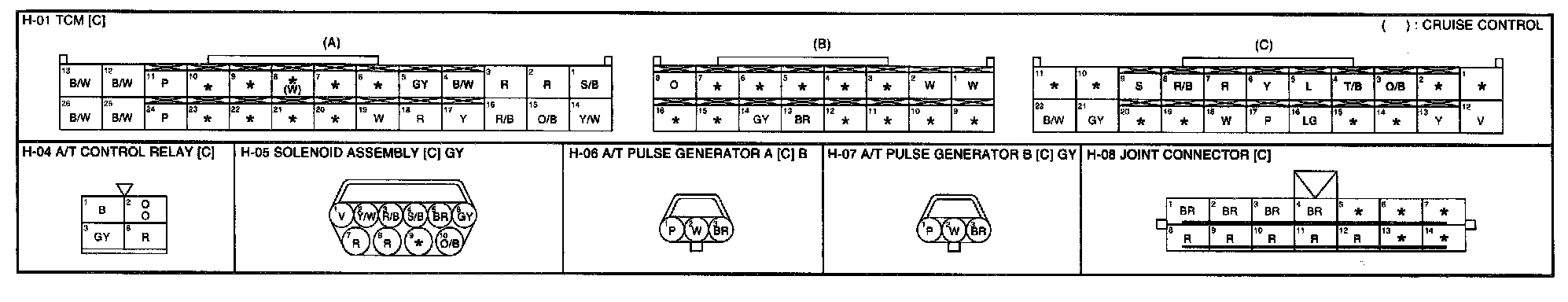

H-1b - Automatic Transaxle Control System Connectors:
